Lutron MSC-S8AM-PD Maestro 8A Electronic Switch, 120V/8A, Multi-Location Compatible, Satin Finish
Lutron MSC-S8AM-PD Maestro 8A Electronic Switch, 120V/8A, Multi-Location Compatible, Satin Finish
- MPN: MSC-S8AM-PD
- UPC: 027557265867
- PPN: LUT-MSC-S8AM-PD
- UNSPSC: 39122216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$64.50/ EA
Description

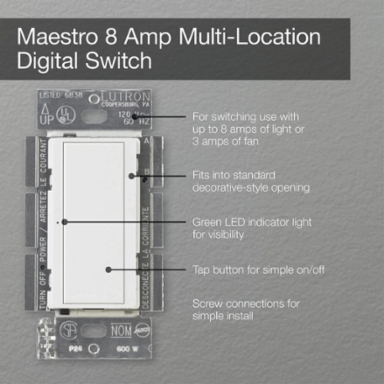

The Lutron Maestro 8A Electronic Switch is rated to work with up to 8A of lighting loads, or 3A general purpose fans. The Maestro 8A Switch requires a neutral and is compatible with multi-location switching applications; Lutron Accessory switches are required (MA-AS/MSC-AS). Use up to 9 Lutron Accessory switches with one Lutron Maestro Electronic Switch; existing 3-way switch are not compatible. The Maestro Companion switches sync with the programming of the main Maestro Switch. The Maestro 8A switch completes any project and matches the Maestro aesthetic for areas that don’t require a Maestro dimmer or sensor. Press anywhere on the tap switch to toggle between ON/OFF. A soft green LED indicator light glows when load is OFF and brighten when load is ON. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).
Features
- Includes (1) Lutron Maestro 8A Electronic Switch; Satin Finish
- Rated for up to 8A lighting or 3A general purpose fans
- Neutral required; 120V
- Screw Terminal or Push-in installation
- Single Pole/ Multi-location compatible
- Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications; traditional 3-way switches are not compatible
- Use up to 9 companion switches (MA-AS/MSC-AS) with one Lutron Maestro 8A switch
- Companion switches (MA-AS/MSC-AS) sync with programming from main Maestro switch
- Tap anywhere to toggle lights/fan ON/OFF
- Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately
- Rated for 8 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans
- For multi-location switching, use one Maestro multi-location switch with Maestro companion switches
- Tap switch on/off
Specifications
Specifications
- Connection
- Screwed Terminal
- Application
- Lighting Control
- Enclosure
- Plastic
- Contact Configuration
- N-O
- Wattage
- 960 W
- Family Color
- Gray
- Operating Temperature, Maximum
- 104 F
- Material Quality
- Plastic/Metal
- Material
- Metal;Plastic
- Model
- Electronic switch, multi-location/single-pole
- Finish
- Satin
- Type
- Electronic switch, multi-location/single-pole
- Color
- Palladium
Contact Rating8
ActuatorTapswitch
Amperage Rating8 A
Voltage Rating120
Operating Temperature, Minimum32 F
Decorative ColorPalladium
InsulationPlastic
Surface FinishingSatin
MountingWallbox
Aesthetic FinishSatin

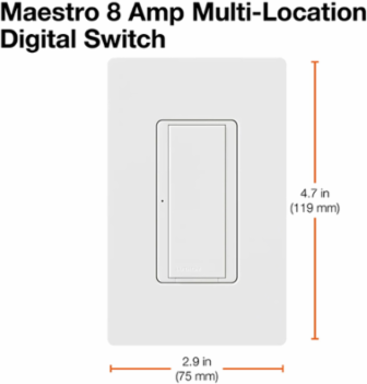

Size4.69 x 2.94;119 x 75 in;mm
Operating Temperature32 to 104 F
