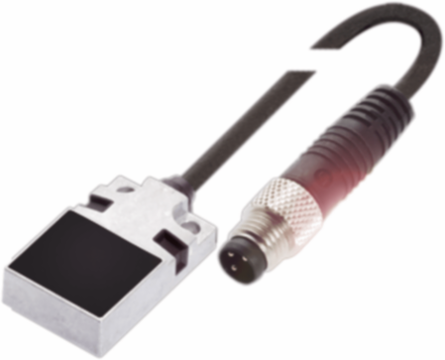

Balluff BES R01ZC-PSC50B-BZ00,2-GS49-V02 Magnetic-field-resistant inductive sensors BES R01ZC-PSC50B-BZ00,2-GS49-V02
Balluff BES R01ZC-PSC50B-BZ00,2-GS49-V02 Magnetic-field-resistant inductive sensors BES R01ZC-PSC50B-BZ00,2-GS49-V02
- MPN: BES R01ZC-PSC50B-BZ00,2-GS49-V02
- PPN: BAL-BES0493
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$244.89/ EA
Description
Our magnetic-field-resistant inductive sensors are ideal for use in areas with strong magnetic fields such as in welding and induction hardening installations. They are insensitive to magnetic fields arising from electric welding currents up to 25 kA.
Specifications
Specifications
- Dimension
- 32 x 20 x 8 mm
- Installation
- for flush mounting
- Switching output
- PNP Normally open (NO)
- Housing material
- Zinc, Die casting
- Connection
- Cable with connector, M8x1-Male, 3-pin, 0.20 m, TPU
- Ambient temperature
- -25-70 °C
- IP rating
- IP67
Style32x20x8
Range5 mm
Switching frequency100 Hz
Material sensing surfacePA 12
Operating voltage Ub10-30 VDC
Magnetic field immunemagnetic field immune (AC/DC)
Approval/ConformityCE, cULus, EAC, WEEE
