Inductive standard sensors with preferred types BES 516-211-E4-E-03
Balluff

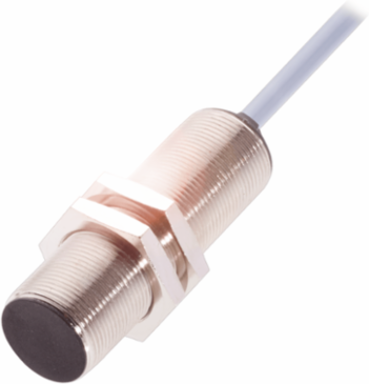

Balluff BES 516-211-E4-E-03 Inductive standard sensors with preferred types BES 516-211-E4-E-03

  • MPN: BES 516-211-E4-E-03
  • PPN: BAL-BES028L

CAD

$174.41

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Key Specifications

Dimension
Ø 18 x 61.5 mm
Installation
for flush mounting
Switching output
Normally open (NO)
Housing material
Brass
Material sensing surface
PA 12
Operating voltage Ub
20-250 VDC/20-250 VAC
IP rating
IP67
StyleM18x1
Range5 mm
Switching frequency250 Hz
Surface protectionnickel plated
ConnectionCable, 3.00 m, PVC
Ambient temperature-25-70 °C
Approval/ConformityCE, cULus, EAC, WEEE
