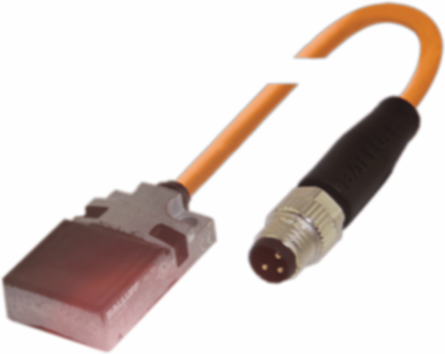

Balluff BES R01ZC-PSC50B-BZ00,5-GS04-V02 Magnetic-field-resistant inductive sensors BES R01ZC-PSC50B-BZ00,5-GS04-V02
- MPN: BES R01ZC-PSC50B-BZ00,5-GS04-V02
- PPN: BAL-BES048W
CAD
$256.34
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our magnetic-field-resistant inductive sensors are ideal for use in areas with strong magnetic fields such as in welding and induction hardening installations. They are insensitive to magnetic fields arising from electric welding currents up to 25 kA.
Documentation & Downloads
Specifications
Key Specifications
| Dimension | 32 x 20 x 8 mm |
|---|---|
| Installation | for flush mounting |
| Switching output | PNP Normally open (NO) |
| Housing material | Zinc, Die casting |
| Connection | Cable with connector, M12x1-Male, 4-pin, 0.50 m, TPU |
| Ambient temperature | -25-70 °C |
| IP rating | IP67 |
| Style | 32x20x8 |
|---|---|
| Range | 5 mm |
| Switching frequency | 100 Hz |
| Material sensing surface | PA 12 |
| Operating voltage Ub | 10-30 VDC |
| Magnetic field immune | magnetic field immune (AC/DC) |
| Approval/Conformity | CE, cULus, EAC, WEEE |
