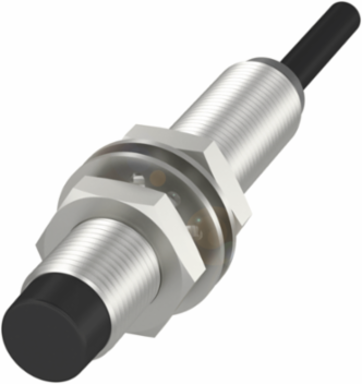

Balluff BES M12EI-NSC40F-BV05 Inductive standard sensors with preferred types BES M12EI-NSC40F-BV05
- MPN: BES M12EI-NSC40F-BV05
- PPN: BAL-BES053F
CAD
$81.23
/ EA
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Documentation & Downloads
Specifications
Key Specifications
| Dimension | Ø 12 x 63 mm |
|---|---|
| Installation | non-flush |
| Switching output | NPN Normally open (NO) |
| Housing material | Stainless steel |
| Connection | Cable, 5.00 m, PVC |
| Ambient temperature | -40-85 °C |
| Approval/Conformity | cULus, CE, EAC, WEEE |
| Style | M12x1 |
|---|---|
| Range | 4 mm |
| Switching frequency | 2500 Hz |
| Material sensing surface | PBT |
| Operating voltage Ub | 10-30 VDC |
| IP rating | IP68 |
