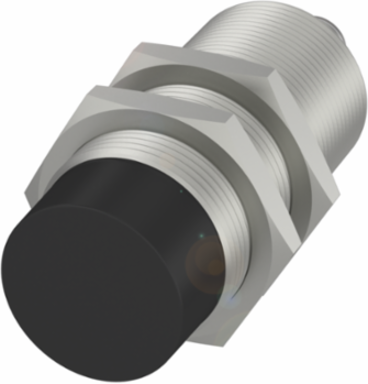

Balluff BES M30MM-PSC30F-S04K Inductive standard sensors with preferred types - BES00AZ
- MPN: BES M30MM-PSC30F-S04K
- PPN: BAL-BES00AZ
CAD
$87.49
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Inductive standard sensors with preferred types - BES00AZ
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Hungary |
|---|---|
| Style | M30x1.5 |
| Range | 30 mm |
| Switching frequency | 300 Hz |
| Material sensing surface | PBT |
| Operating voltage Ub | 10...30 VDC |
| IP rating | IP67 |
| Dimension | Ø 30 x 83 mm |
|---|---|
| Installation | non-flush |
| Switching output | PNP Normally open (NO) |
| Housing material | Brass, Nickel-free coated |
| Connection | Connector, M12x1-Male, 4-pin |
| Ambient temperature | -25...70 °C |
| Approval/Conformity | CE; UKCA; cULus; WEEE |
