Balluff

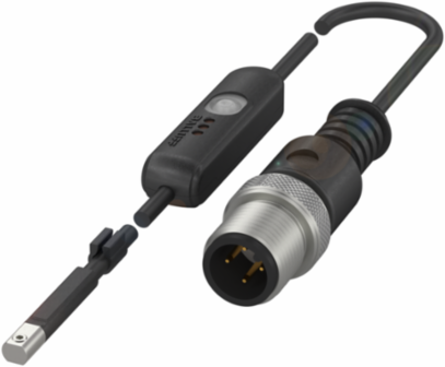

Balluff BMF 203K-H-PI-C-A8-S4-00,3 Magnetic Field Sensor for C-Slot, IP67, 10-30 VDC, 20 x 2.9 x 3.6 mm

Magnetic Field Sensor for C-Slot, IP67, 10-30 VDC, 20 x 2.9 x 3.6 mm
  • MPN: BMF 203K-H-PI-C-A8-S4-00,3
  • PPN: BAL-BMF00JJ

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$227.21/ EA

Description

Magnetic Field Sensor for C-Slot, IP67, 10-30 VDC, 20 x 2.9 x 3.6 mm

Specifications

Specifications

Country of Origin
Hungary
Principle of operation
Magnetic field sensor
Cable
PUR, 0.3 m
Fastening detail
can be installed in C-slot from above
Housing material
PA 12
Switching output
PNP Normally open (NO)
Ambient temperature
-25...80 °C
Approval/Conformity
CE; IO-Link; cULus; WEEE
Dimension20 x 2.9 x 3.6 mm
ConnectionM12x1-Male, 4-pin, A-coded
ApplicationPneumatic cylinder with C-slot. For dimensions, see sketch in product view.
Teach function8 switching points
InterfaceIO-Link 1.1
Operating voltage Ub10...30 VDC
IP rating per IEC 60529IP67
