Balluff

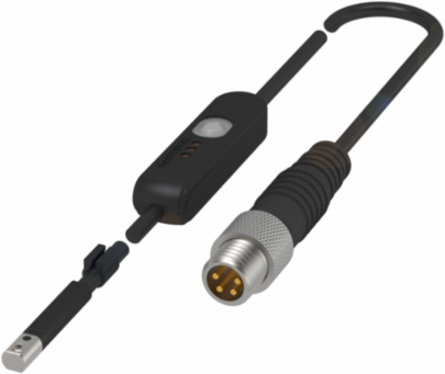

Balluff BMF 203K-H-PS-C-A2-S75-00,3 Magnetic Field Sensor for C-Slot, 20 x 2.9 x 3.6 mm, -25...80 °C, IP67

Magnetic Field Sensor for C-Slot, 20 x 2.9 x 3.6 mm, -25...80 °C, IP67
  • MPN: BMF 203K-H-PS-C-A2-S75-00,3
  • PPN: BAL-BMF00JH

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$184.82/ EA

Description

Magnetic Field Sensor for C-Slot, 20 x 2.9 x 3.6 mm, -25...80 °C, IP67

Specifications

Specifications

Country of Origin
Hungary
Principle of operation
Magnetic field sensor
Cable
PUR, 0.3 m
Fastening detail
can be installed in C-slot from above
Housing material
PA 12
Switching frequency
15 Hz
Ambient temperature
-25...80 °C
Approval/Conformity
CE; UKCA; cULus; WEEE
Dimension20 x 2.9 x 3.6 mm
ConnectionM8x1-Male, 4-pin
ApplicationPneumatic cylinder with C-slot. For dimensions, see sketch in product view.
Teach function2 switching points
Switching outputPNP Normally open (NO)
Operating voltage Ub10...30 VDC
IP rating per IEC 60529IP67
