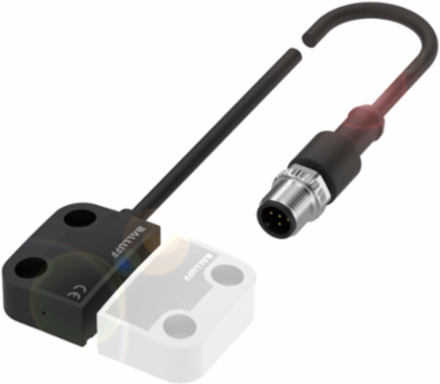

Balluff BID R01K-4M100-M20ZZ0-EP00,2-S92 Magnetically coded safety switches BID R01K-4M100-M20ZZ0-EP00,2-S92
- MPN: BID R01K-4M100-M20ZZ0-EP00,2-S92
- PPN: BAL-BID0007
CAD
$117.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Non-contact magnetically coded safety switches are outstanding for monitoring guard doors – especially in environments where contamination or dust is expected. The non-contact operating principle means they are insensitive to mechanical play, for example when doors settle or are imprecisely guided. This makes the safety switches easy to install. With separate processing electronics the safety switch can be used for applications up to PLe/SIL 3.
Documentation & Downloads
Specifications
Key Specifications
- Dimension
- 26 x 36 x 13 mm
- Approval/Conformity
- CE, cULus, WEEE
- Approach direction
- vertrical to the active surface
- Assured operating distance Sao
- 5 mm
- Connection
- Cable with connector, M12x1, 5-pin, 20 cm, PUR
- IP rating
- IP67
B10d (EN ISO 13849-1)NC at 20% contact load 25 mil. Switching operations
Operating principlenon-contact (magnetic)
Life expectancy mechanical100 million Switching operations
Assured switch off distance Sar15 mm
Ambient temperature-25-70 °C
Housing materialThermoplastic, glass-fiber reinforced
