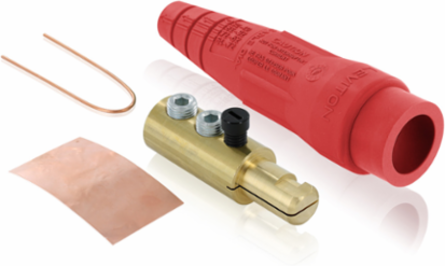

Leviton 18D24-UR 18 Series Male Plug, 2/0 – 4/0 AWG, 400 Amp, Double Set Screw Termination
- MPN: 18D24-UR
- UPC: 078477718995
- PPN: LEV-18D24-UR
CAD
$77.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
18 Series Ball Nose Cam-Type Male Plug, Contact & Insulator, Detachable, 2/0 - 4/0 AWG, Double Set Screw Termination, 400 Amp Max, 600VAC/DC, Type 3R When Mated, Red
Features
- Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- Single or double set screw termination
- NEMA 3R rated for outdoor use when mated
- UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Cable Range
- 2/0 – 4/0 AWG
- Component
- Complete
- Contact Cat. No.
- 18D24-C
- Insulator Cat. No.
- 18SDM-14Y
- Max. Voltage
- 600 Volt
- Standards and Certifications
- UL/CSA
- Warranty
- NA
ColorRed
Connection TypeDouble Set Screw
GenderMale
Max. Amperage400 Amp
Series18
Style NameDetachable
Standards and Certifications
- UL Listed
- File E-13399; 1691, 508 – 35k A / 600V Short Circuit Current Rating
