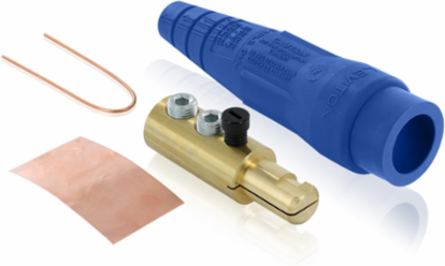

Leviton 18D24-UB 18 Series Male Plug, 2/0 - 4/0 AWG, Double Set Screw Termination
Leviton 18D24-UB 18 Series Male Plug, 2/0 - 4/0 AWG, Double Set Screw Termination
- MPN: 18D24-UB
- UPC: 078477719060
- PPN: LEV-18D24-UB
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$77.66/ EA
Description
18 Series Ball Nose Cam-Type Male Plug, Contact & Insulator, Detachable, 2/0 - 4/0 AWG, Double Set Screw Termination, 400 Amp Max, 600VAC/DC, Type 3R When Mated, Blue
Features
- Leviton’s Rhino-Hide Single Pole Cam-Type Connectors supply temporary electrical power for both indoor and outdoor applications. These devices are designed for easy assembly and disassembly, without special tools.
- Single or double set screw termination
- NEMA 3R rated for outdoor use when mated
- UL: 1691, 508 – 35k A / 600V Short Circuit Current Rating
- Color-coding provides fast and easy phase identification
- Common applications: entertainment, oil and gas, mining operations, power distribution, construction sites, and other temporary power applications
Specifications
Standards and Certifications
- CSA Certified
- File 152105
UL ListedFile E-13399; 1691, 508 – 35k A / 600V Short Circuit Current Rating
Material Specifications
- Contacts
- Brass
Strain ReliefCopper Wire
Mechanical Specifications
- Cable Range
- 2/0 – 4/0 AWG
- Gender
- Male
Connection TypeDouble Set Screw
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Contact Cat. No.
- 18D24-C
Insulator Cat. No.18SDM-14B
Electrical Specifications
- Max. Amperage
- 400 Amp
Max. Voltage600 Volt
