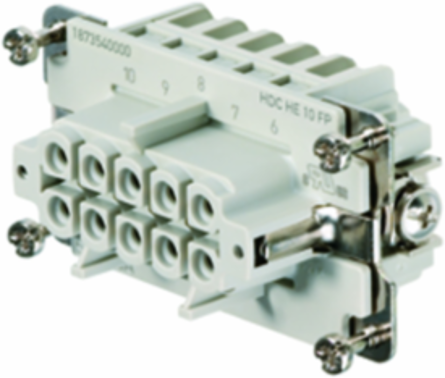

Weidmuller 1873540000 HDC HE 10 FP
- MPN: 1873540000
- PPN: WDM-1873540000
CAD
$12.51
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
HDC insert, Female, 500 V, 16 A, Number of poles: 10, PUSH IN, Size: 4
Documentation & Downloads
Specifications
Additional
| Rated Current | 16 A |
|---|---|
| Nominal Voltage | 600 V AC/DC |
| Pollution Severity | 3 |
| Temperature Range | -40 C to 125 C |
| Wire Connection Cross Section, Max | 2.5 mm2 |
| Wire Connection Cross Section, Finely Stranded with Wire-End Ferrules Max | 1.5 mm2 |
| Wire Cross Section, AWG (PE) Min | AWG 20 |
| Type of Connection | PUSH IN |

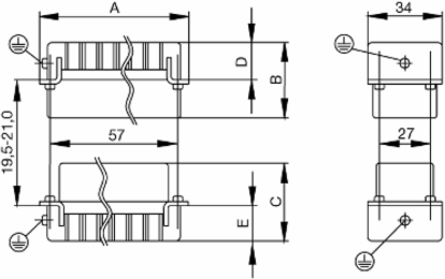

| Depth | 64 mm |
| Width | 34 mm |
| Size | 4 |
| Surface Finish | Silver passivated |
| RoHS Compliance | Compliant with exemption |
| Approvals | CSA, cURus, DNV GL, EAC |
| Product Family | HDC insert |
| Rated Voltage | 500 V |
|---|---|
| Number of Poles | 10 |
| Rated Impulse Voltage | 6 kV |
| Wire Connection Cross Section, Min | 0.5 mm2 |
| Wire Cross Section Max (IECEX/ATEX) | 4 mm2 |
| Wire Connection Cross Section, Finely Stranded with Wire-End Ferrules Min | 0.5 mm2 |
| Wire Cross Section, AWG (PE) Max | AWG 12 |
| Tightening Torque PE Connection | 1.2 to 1.5 Nm |
| Height | 33.8 mm |
| Net Weight | 61 g |
| Material | Copper alloy, PC glass-fibre reinforced (UL-listed and railway-certified) |
| Flammability Rating | UL 94 V-0 |
| Low Smoke | Yes (DIN EN 45545-2) |
| Color | beige |
| Series | HE |
