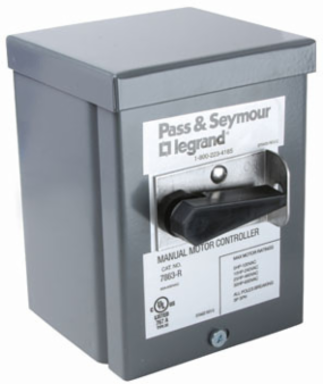

Pass & Seymour 7863R Manual Control Switch 3-Pole 60A 600V Gray NEMA 3R Enclosure
- MPN: 7863R
- UPC: 785007078640
- PPN: P-S-7863R
CAD
$331.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Manual Control Switch 3-Pole 60A 600V Gray NEMA 3R Enclosure
Features
- High horsepower rating, up to 3HP for heavy-duty applications. Compact design provides ease of installation. Single piece moveable and stationary contact arms with oversized silver cadmium buttons provides excellent continuity and long life.
- Made in USA. Box lug terminals. Wire pockets and thick wall arc barriers. Cold-rolled steel NEMA 3R enclosure with polyester urethane finish conforms to OSHA lockout requirements.
- Type 3R enclosure has 2-1/2 inch, 3/4 inch, and 1 inch concentric knockouts on bottom. Accepts #4 AWG. cULus listed.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.66 in
- Color
- Gray
- Width
- 1.74 in
- Country of Origin
- United States
- Load Type
- CFL
- Amperage
- 60.0 A
- Voltage
- 600.0 V
- Load Type
- Halogen
- Standard
- UL Listed
- Indoor/Outdoor
- Both
- Load Type
- Fluorescent
- Number of Poles
- 3-Way
- Number of Switches
- 1.0
- Wall Plate Included
- No
- Load Rating
- 60 A @ 600 VAC
- Application Sector
- Industrial
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
- Special Features
- Compact design, 2pt contact arms, heavy duty zinc plated steel strap, oversized silver alloy contacts
Height3.26 in
FinishMatte
MaterialAluminum
Product LinePass & Seymour
Load TypeLED
Load TypeXenon
FeaturesEnclosed
Number of Gangs1
Switch TypeToggle
Load TypeUniversal
Mounting TypeOn-Wall
Load TypeIncandescent
TypeManual Controller
Requires Neutral WireYes
Application SectorCommercial
Horsepower Rating3 HP @ 600 VAC
Wire Connection TypeScrew Terminals
Terminal Accommodation#14 AWG - #10 AWG
