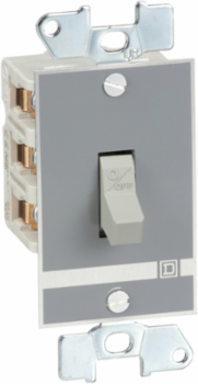

Square D 2510KO2 Manual Motor Switch, 30A, 3 Pole, 10HP at 575VAC, Toggle Operated
- MPN: 2510KO2
- UPC: 785901554585
- PPN: SCH-2510KO2
CAD
$246.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switches is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This manual motor switch is not supplied with an enclosure. This switch is 4.13 inches tall, 1.69 inches wide and 2.34 inches deep. It weighs 0.35 lb. This device is UL Listed and CSA certified.
Features
- This Type K manual motor starting switch features a robust 3-pole configuration designed explicitly for high-power, multi-phase systems. It acts as a direct, unified controller that connects or disconnects all three hot lines simultaneously, ensuring balanced electrical distribution and preventing dangerous single-phasing events across downstream 3-phase motors.
- This manual switch features an open-style chassis design without a NEMA-rated protective enclosure. Engineered specifically for direct flush-mounting into an existing control panel board, utility wall plate, or specialized junction box, this open configuration saves interior cabinet space and provides clean integration into pre-established industrial enclosures.
- Engineered for high-capacity power delivery, this 30 A continuous-duty switch operates flawlessly at up to 600V AC. It delivers an impressive 10 hp rating at 460-575V AC (and up to 7.5 hp at 230V AC), giving facility managers and plant electricians the exact heavy-duty capacity required to operate industrial ventilation fans, production conveyors, and heavy processing pumps.
- Featuring a high-torque, non-reversing industrial manual toggle operator handle, this starter provides immediate, positive tactile feedback when switched. The heavy-duty "ON/OFF" toggle switch ensures non-fumble, clear-state operation even for workers wearing thick industrial safety gloves, providing an unmistakable visual status of the machine's running condition from a distance.
- This Type K switch functions as a direct disconnector designed for applications where overload protection is not required or is provided by an independent upstream device. By focusing purely on reliable, uninhibited on/off circuit control, it avoids the nuisance thermal tripping caused by fluctuating ambient temperatures in hot plant environments, saving hardware space and reducing upfront costs.
- Equipped with industrial-grade screw clamp terminals, this switch ensures an enduring, low-resistance connection that accepts solid or stranded copper conductors from 14 AWG up to 10 AWG. The heavy-duty backing screws maintain tight compression over time, preventing localized electrical resistance heating and loose wire connections caused by persistent machinery vibration.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth2.34 in
Complementary Attributes
- Maximum Horse Power Rating
- 2 hp 115 V DC2 hp 115 V AC, 1 hp 90 V DC1.5 hp 230 V DC, 7.5 hp 230 V AC10 hp 460 V AC, 10 hp 575 V AC
Line Rated Current30 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL recognized E42243 CCN NLRV2, CSA LR25490 class 3211 05
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.3 kg CO2 eq., 0.2620040746846203
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 1 kg CO2 eq., 0.9835358262960926
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- toggle
- Energy Efficiency Optimized
- False
- Motor Starter Type
- non reversing
- Phase
- 3 phase
- Product Or Component Type
- Single Unit Manual Switch
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 74
- Width Nominal
- 1.69 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536504000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.04850049869120548, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.020079768404709503, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]47 kg CO2 eq., 46.72657767197692
Local Publishable Date2026-03-25
Stocking FlagN
Device TypeLV equipment - LV switch - disconnector
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2541
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Awg Gauge14 AWG...10 AWG copper
Electrical Connectionscrew clamp terminals
Local Signallingno indicator
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductK
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint48 kg CO2 eq.
Pep CodeENVPEP2507018EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal4.13 in
[Ue] Rated Operational Voltage600 V AC230 V DC
Package Weight(Lbs)167.829 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 48.04069784005355
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2507018EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2507018EN
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Phase
- 3 phase
- Range Of Product
- K
Product Or Component TypeSingle Unit Manual Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
