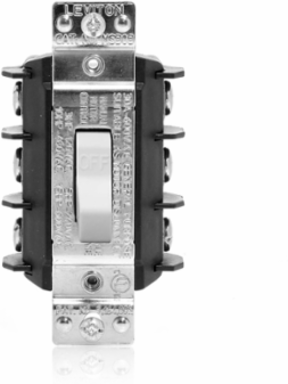

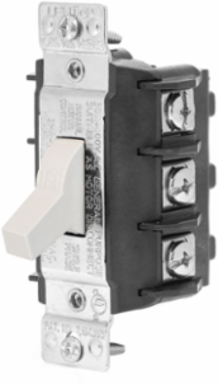

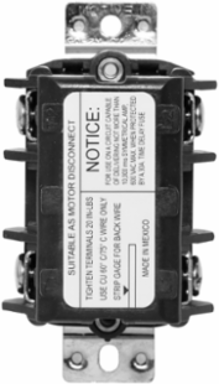

Leviton MS303-DSW 30 Amp 600 Volt 3-Pole AC Manual Motor Controller, Industrial Toggle Switch
- MPN: MS303-DSW
- UPC: 078477983720
- PPN: LEV-MS303-DSW
CAD
$92.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
30 Amp, 600 Volt, 3-Pole, Three-Phase Single Throw AC Manual Motor Controller, Suitable as Motor Disconnect, Standard Toggle, Industrial Grade, Non-Grounding, Back & Side Wiring - White
Features
- Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NOM | NOM-ANCE |
| Warranty | 10-Year Limited |
| NEMA | WD-1 & WD-6 |
|---|---|
| UL 60947-4-1 | supersedes UL 508 |
| cUL per CSA C22.2 No. 111 | File #E63969 |
Material Specifications
| Base Material | Thermoplastic Polyester |
|---|---|
| Cover Material | Thermoplastic Polyester |
| Terminal Screws | Nickel-Plated Brass 10-32, Triple Combination |
| Contacts | Silver-Alloy |
|---|---|
| Strap Material | Nickel-Plated Brass |
| Toggle | Thermoplastic Polyester |

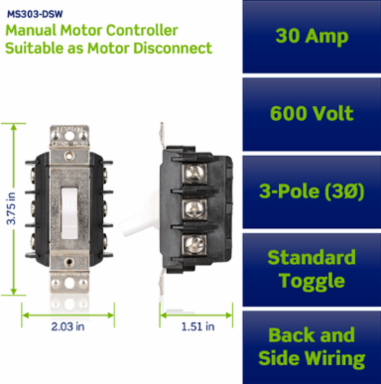

Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal ID | T1, T2, T3, L1, L2 & L3 marked on back of device |
| Torque Range | 20 inch pounds maximum |
| Terminal Accom. | #10 - #8 AWG |
|---|---|
| Termination | Back & Side |
Product Features
| Color | White |
|---|
| Device Type | Toggle Switch |
|---|
Environmental Specifications
| Flammability | Rated V-0 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 30 A |
|---|---|
| Endurance | 6,000 cycles inductive motor type load |
| Overload UL20 Test | 50 cycles at 6 times full rated current |
| Short Circuit Current Rating | 10,000 RMS symmetrical amps at 600V AC max. when protected by a 30A time delay fuse |
| Voltage | 600 VAC |
| Dielectric Voltage | Withstands 2200 VAC for 1 min. |
|---|---|
| Grounding | Non-Grounding |
| Pole | 3 |
| Temperature Rise | 50ºC Max at full rated current |
AC Horsepower Ratings
| HP Rating | 3HP-120V, 7.5HP-240V, 15HP-480V, 20HP-600V |
|---|
