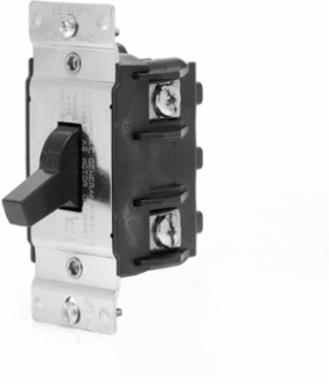

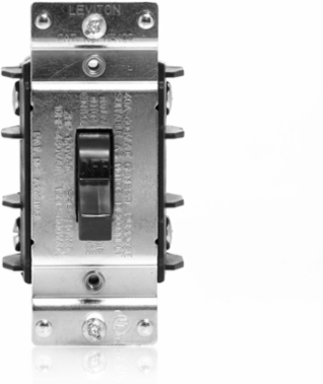

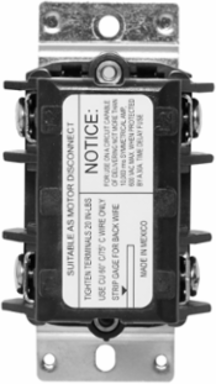

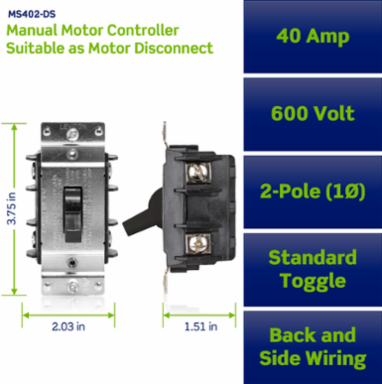

Leviton MS402-DS Industrial Manual Motor Controller, 40 Amp 600 Volt, 2-Pole, Thermoplastic Polyester
- MPN: MS402-DS
- UPC: 078477374191
- PPN: LEV-MS402-DS
CAD
$82.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
40 Amp, 600 Volt, 2-Pole, Single-Phase Single Throw AC Manual Motor Controller, Suitable as Motor Disconnect, Standard Toggle, Industrial Grade, Non-Grounding, Back & Side Wiring, - Black
Features
- Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NOM
- NOM-ANCE
- Warranty
- 10-Year Limited
NEMAWD-1 & WD-6
UL 60947-4-1supersedes UL 508
cUL per CSA C22.2 No. 111File #E63969
Material Specifications
- Base Material
- Thermoplastic Polyester
- Cover Material
- Thermoplastic Polyester
- Terminal Screws
- Nickel-Plated Brass 10-32
ContactsSilver-Alloy
Strap MaterialNickel Plated Brass
ToggleThermoplastic Polyester
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- T1, T2, L1, & L2 marked on back of device
- Torque Range
- 20 inch pounds maximum
Terminal Accom.#10 - #8 AWG
TerminationBack & Side
Product Features
- Color
- Black
Device TypeToggle Switch
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 40 A
- Endurance
- 6,000 cycles inductive motor type load
- Overload UL20 Test
- 50 cycles at 6 times full rated current
- Short Circuit Current Rating
- 10,000 RMS symmetrical amps at 600V AC max. when protected by a 30A time delay fuse
- Voltage
- 600 VAC
Dielectric VoltageWithstands 2200 VAC for 1 min.
GroundingNon-Grounding
Pole2
Temperature Rise50ºC Max at full rated current
AC Horsepower Ratings
- HP Rating
- 2HP-120V, 5HP-240V, 10HP-480V, 15HP-600V
