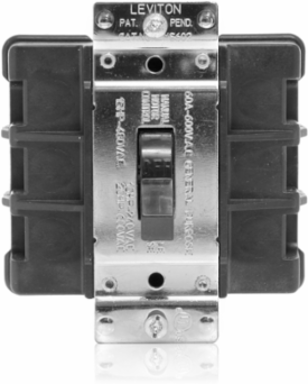

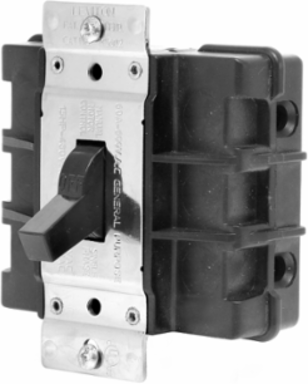

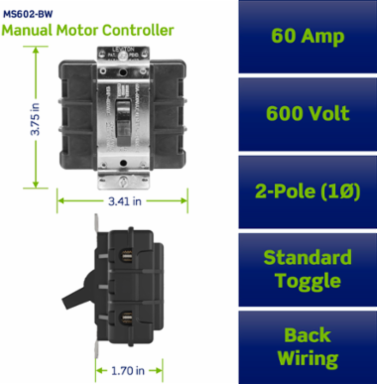

Leviton MS602-BW AC Manual Motor Controller 60 Amp 600 Volt Toggle Switch
- MPN: MS602-BW
- UPC: 078477073735
- PPN: LEV-MS602-BW
CAD
$135.50
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
60 Amp, 600 Volt, 2-Pole, Single Phase Single Throw, AC Manual Motor Controller, Standard Toggle, Industrial Grade, Non-Grounding, Back Wired, - Black
Features
- Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NOM | NOM-ANCE |
| Warranty | 10-Year Limited |
| NEMA | WD-1 & WD-6 |
|---|---|
| UL 60947-4-1 | supersedes UL 508 |
| cUL per CSA C22.2 No. 111 | File #E63969 |
Material Specifications
| Base Material | Thermoplastic Polyester |
|---|---|
| Cover Material | Thermoplastic Polyester |
| Terminal Screws | Zinc-Plated Steel 5/16-24, Triple Combination |
| Contacts | Silver-Alloy |
|---|---|
| Strap Material | Nickel-Plated Brass |
| Toggle | Thermoplastic Polyester |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|

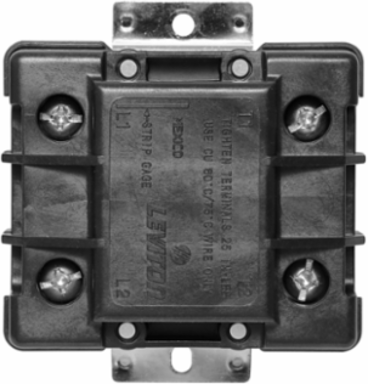

| Terminal ID | T1, T2, L1 & L2 marked on back of device |
| Torque Range | 25 inch pounds maximum |
| Terminal Accom. | #10 - #4 AWG |
|---|---|
| Termination | Back |
Product Features
| Color | Black |
|---|
| Device Type | Toggle Switch |
|---|
Environmental Specifications
| Flammability | Rated V-0 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 60 A |
|---|---|
| Endurance | 6,000 cycles inductive motor type load |
| Overload UL20 Test | 50 cycles at 6 times full rated current |
| Short Circuit Current Rating | 5,000 RMS symmetrical amps at 600V AC max. |
| Voltage | 600 VAC |
| Dielectric Voltage | Withstands 2200 VAC for 1 min. |
|---|---|
| Grounding | Non-Grounding |
| Pole | 2 |
| Temperature Rise | 50ºC Max at full rated current |
AC Horsepower Ratings
| HP Rating | 10HP-240V, 15HP-480V, 20HP-600V |
|---|
