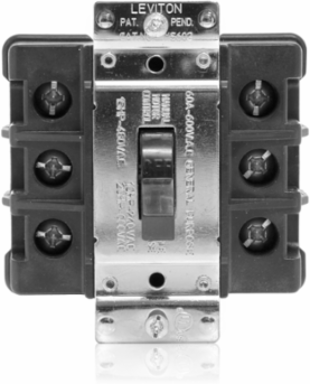

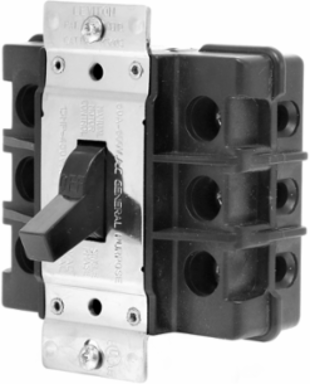

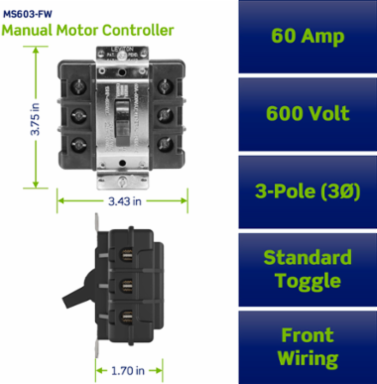

Leviton MS603-FW Manual Motor Controller 60 Amp 600 Volt 3-Pole Non-Grounding Toggle Switch
- MPN: MS603-FW
- UPC: 078477093627
- PPN: LEV-MS603-FW
CAD
$184.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
60 Amp, 600 Volt, 3-Pole, Three-Phase Single Throw AC Manual Motor Controller, Standard Toggle, Industrial Grade, Non-Grounding, Front Wired, - Black
Features
- Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NOM
- NOM-ANCE
- Warranty
- 10-Year Limited
NEMAWD-1 & WD-6
UL 60947-4-1supersedes UL 508
cUL per CSA C22.2 No. 111File #E63969
Material Specifications
- Base Material
- Thermoplastic Polyester
- Cover Material
- Thermoplastic Polyester
- Terminal Screws
- Zinc-Plated Steel 5/16-24, Triple Combination
ContactsSilver-Alloy
Strap MaterialNickel-Plated Brass
ToggleThermoplastic Polyester
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID

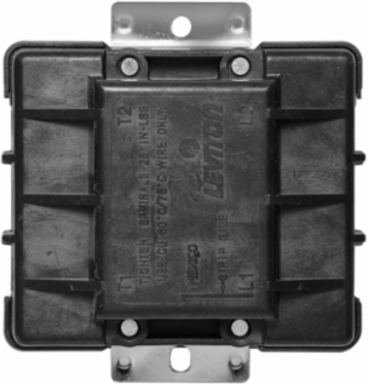

- T1, T2, T3, L1, L2 & L3 marked on back of device
- Torque Range
- 25 inch pounds maximum
Terminal Accom.#10 - #4 AWG
TerminationFront
Product Features
- Color
- Black
Device TypeToggle Switch
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 60 A
- Endurance
- 6,000 cycles inductive motor type load
- Overload UL20 Test
- 50 cycles at 6 times full rated current
- Short Circuit Current Rating
- 5,000 RMS symmetrical amps at 600V AC max
- Voltage
- 600 VAC
Dielectric VoltageWithstands 2200 VAC for 1 min.
GroundingNon-Grounding
Pole3
Temperature Rise50ºC Max at full rated current
AC Horsepower Ratings
- HP Rating
- 10HP-240V, 25HP-480V, 30HP-600V
