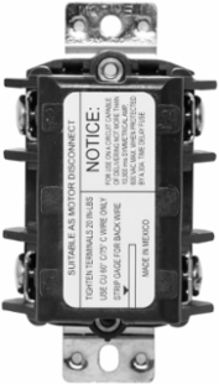

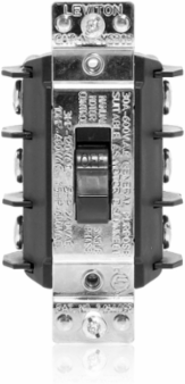

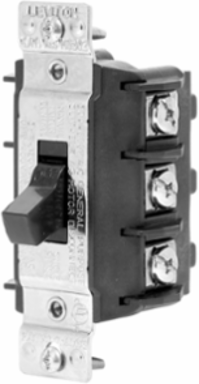

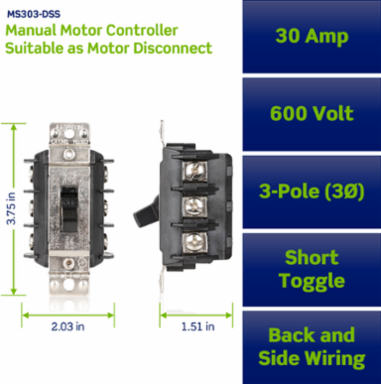

Leviton MS303-DSS 30 Amp AC Manual Motor Controller, 600 Volt, 3-Pole, Toggle Switch
- MPN: MS303-DSS
- UPC: 078477374184
- PPN: LEV-MS303-DSS
CAD
$92.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
30 Amp, 600 Volt, 3-Pole, Three-Phase Single Throw AC Manual Motor Controller, Suitable as Motor Disconnect, Short Toggle, Industrial Grade, Non-Grounding, Back & Side Wiring, - Black
Features
- Powerswitch® Industrial Grade AC Manual Motor Controllers provide safe, reliable control of a variety of motor loads. Typical applications include manual ON/OFF switching control of conveyor systems, pumping machines, HVAC systems, air compressors and other heavy manufacturing equipment. These motor controllers are available for both single-phase and three-phase applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NOM
- NOM-ANCE
- Warranty
- 10-Year Limited
NEMAWD-1 & WD-6
UL 60947-4-1supersedes UL 508
cUL per CSA C22.2 No. 111File #E63969
Material Specifications
- Base Material
- Thermoplastic Polyester
- Contacts
- Silver-Alloy
- Strap Material
- Nickel-Plated Brass
- Toggle
- Thermoplastic Polyester
ColorBlack
Cover MaterialThermoplastic Polyester
Terminal ScrewsNickel-Plated Brass 10-32, Triple Combination
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- T1, T2, T3, L1, L2 & L3 marked on back of device
- Torque Range
- 20 inch pounds maximum
Terminal Accom.#10 - #8 AWG
TerminationBack & Side
Product Features
- Device Type
- Toggle Switch
Environmental Specifications
- Flammability
- Rated V-0 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 30 A
- Endurance
- 6,000 cycles inductive motor type load
- Overload UL20 Test
- 50 cycles at 6 times full rated current
- Short Circuit Current Rating
- 10,000 RMS symmetrical amps at 600V AC max. when protected by a 30A time delay fuse
- Voltage
- 600 VAC
Dielectric VoltageWithstands 2200 VAC for 1 min.
GroundingNon-Grounding
Pole3
Temperature Rise50ºC Max at full rated current
AC Horsepower Ratings
- HP Rating
- 3HP-120V, 7.5HP-240V, 15HP-480V, 20HP-600V
