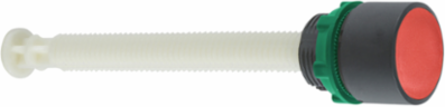

Schneider Electric XB5AA841 Harmony XB5 Manual Overload Reset Push Button 22mm Red Flush, 17-120 mm Actuation
- MPN: XB5AA841
- PPN: SCH-XB5AA841
CAD
$25.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This manual overload reset push button, designed by Schneider Electric, features a sleek 22mm flush profile that integrates seamlessly into various control applications. With an actuation range of 17-120 mm, it offers reliable performance and ease of use, making it ideal for automation and control tasks. The vibrant red color not only enhances visibility but also ensures quick identification in critical situations. As part of the Harmony XB5 series, this push button combines robust design with user-friendly functionality, proving essential for operators who demand both safety and efficiency in their workflow.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Depth120 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 0, no
- Operator Profile 1 Cap Operator Or Lens Color
- red
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.1 kg CO2 eq., 0.09136653061944754
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.4 kg CO2 eq., 0.3746474933652849
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Product Repair Index Dam Doc
- XB4BS8442-ENVREPAIR-A-EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Average Percentage Of Recycled Metal Content
- 13 %
- Bezel Material
- dark grey plastic
- Device Short Name
- XB5
- Fixing Collar Material
- plastic
- Mechanical Durability
- 5000000 cycles
- Operating Travel
- 10 mm
- Product Or Component Type
- manual overload reset push-button
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Operator Profile 1 Operator Profile
- flush
- Pep Code
- ENVPEP2303008_V2
- Pep Verification Date
- 2024-03-24
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; APAC
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; APAC
- Width Nominal
- 29 mm
- Cap/Operator Or Lens Colour
- red
- Package Weight(Lbs)
- 38.000 g
- Take-back
- No
- Customs Code
- 8538908160
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operator Profilered , unmarked, flush
Carbon Footprint Of The Distribution Phase [A4]0.01765061686521904, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.013327462921149502, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2303008EN
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content14 %
Compatibility CodeXB5
Electrical Shock Protection Classclass II conforming to IEC 60536
Head Typestandard
Mounting Diameter22 mm
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB5
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0.5 kg CO2 eq.
R Activating Distance17-120 mm
Operator Profile 1 Markingunmarked
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionXB5 Modular green push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations.A push button switch's primary purpose is to turn something on or off in industrial applications. This pushbutton power consumption is 0.002W with 71% active mode for 10 years, and it product complies with IEC 60947-1 standards..
