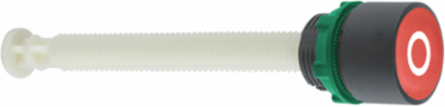

Schneider Electric XB5AA84101 Harmony XB5 Manual Overload Reset Push Button Ø22 mm, IP66, 17-120 mm Actuation
- MPN: XB5AA84101
- PPN: SCH-XB5AA84101
CAD
$25.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The Harmony XB5 manual overload reset push button from Schneider Electric is engineered for reliability in automation and control applications. With a robust 22 mm design and an IP66 rating, it offers superior protection against dust and water, making it suitable for even harsh environments. The device features a versatile actuation range of 17-120 mm, ensuring seamless integration into various systems. This push button head is not only built for performance but also optimizes user interaction through its straightforward reset functionality, enhancing operational efficiency across multiple applications.
Documentation & Downloads
Specifications
Additional
- Activating Distance
- 17-120 mm (0.67-4.72 in)
- Product Type
- Manual overload reset push-button
- Ambient Temperature for Operation
- -40 to 70 °C (-40 to 158 °F)
- IP Degree of Protection
- IP66 IEC 60529
- IK Degree of Protection
- IK03 IEC 50102
- Certifications
- UL Listed
- Mounting Diameter
- 22 mm (0.87 in)
- Width
- 29 mm (1.14 in)
- Net Weight
- 0.027 kg (0.06 lb)
- China RoHS Compliance
- Yes
- Operator Profile
- Red flush, O white
- Fixing Collar Material
- Plastic
- Sustainable Offer Status
- Green Premium product
- Device Short Name
- XB5
- Circularity Profile
- ENVEOLI1710010EN
Operating Travel10 mm (0.39 in)
Resistance to High Pressure Washer7000000 Pa (1015 psi), 55°C, 0.1 m
Electrical Shock Protection ClassClass II IEC 60536
NEMA Degree of ProtectionNEMA 4X
StandardsIEC 60947-1
RoHS CompliancePro-active compliance, RoHS, free of SVHC, Toxic heavy metal free, Mercury free
Height29 mm (1.14 in)
Depth120 mm (4.72 in)
Ambient Temperature for Storage-40 to 70 °C (-40 to 158 °F)
Warranty18 months
Bezel MaterialDark grey plastic
Protective TreatmentTH
Range of ProductHarmony XB5
Shape of Signaling Unit HeadRound
Environmental DisclosureENVPEP1710010EN
