Square D 2510KW2CH Manual Switch 30A 3 Pole 10HP 575VAC NEMA 4 Enclosure
- MPN: 2510KW2CH
- UPC: 785901376415
- PPN: SCH-2510KW2CH
CAD
$906.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

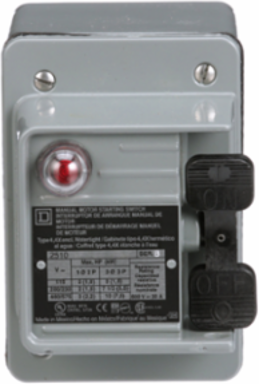

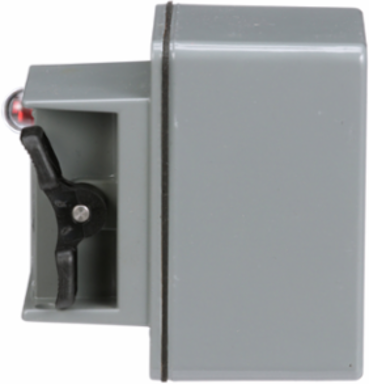

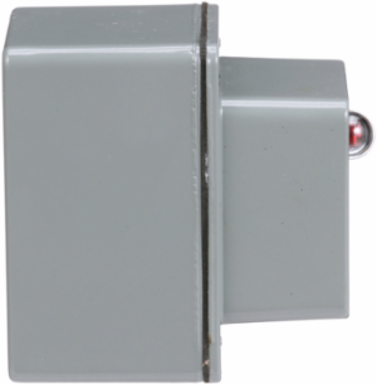

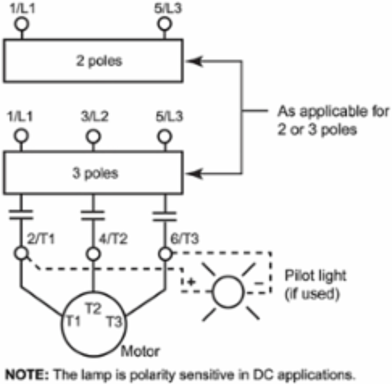

2510K manual non-reversing motor switches are designed for manual On Off control for small motors. These non-reversing manual switches are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This switch can also be used on non-motor loads such as resistance heaters. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, and 10 HP at 600VAC three phase. It is also rated for 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC motors. Overload protection for the motor must be supplied separately. 2510K switches can be ordered in a variety of enclosure types. This device is in a surface mount NEMA 4 watertight enclosure. This enclosure has one conduit entry on the bottom and one on the top. The 0.75 inch conduit entries are tapped with number 14 pipe threads. Enclosure is 4.38 inches tall, 3.00 inches wide and 4.56 inches deep. A toggle handle is used to turn the manual switch on and off. The toggle handle can be padlocked in the off position. This switch comes as standard with a 440 to 600 volt red pilot light. 2510K manual switches are UL listed and CSA certified. This device is UL Listed and CSA certified.
Features
- Rated for a continuous 30 Amps at up to 600V AC or 230V DC, this 3-pole Type K manual motor switch provides robust, non-reversing on/off control for three-phase equipment. It delivers dependable structural power handling up to 10 HP at 460/575V AC, making it an ideal choice for running fractional and medium-sized industrial conveyor motors, ventilation fans, fluid pumps, and high-wattage resistance heaters.
- This model comes factory-equipped with a robust, integrated red pilot light indicator calibrated for high-voltage 440...600V AC control monitoring. The luminous indicator gives line workers immediate visual verification of active circuit status from across a loud or congested factory floor, cutting down on troubleshooting steps and dramatically reinforcing safety procedures during system walk-throughs.
- The rugged enclosure features a dual 0.75-inch NPT threaded conduit hub configuration positioned at both the top and bottom of the housing base. Accommodating solid or stranded copper conductors ranging from 14 AWG down to 10 AWG via heavy-duty screw clamp terminals, this layout speeds up field pulls and ensures a gas-tight, vibration-proof termination that won't back out under machine-induced vibrations.
- Bearing official UL listing (File E42243) and formal CSA certification, this Square D by Schneider Electric manual switch satisfies rigid commercial safety codes across North America. Because it does not contain built-in thermal overload protection, it serves as a highly economical local disconnect solution when coordinated alongside separate upstream motor protection, ensuring quick site sign-offs from municipal inspectors.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- K
Product Or Component TypeSingle Unit Manual Switch
Complementary
- Motor Starter Type
- non reversing
- Height
- 4.38 in
- Electrical Connection
- screw clamp terminals
- [In] Rated Current
- 30 A
- Width
- 3 in
- Motor Power Hp
- 2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
- [Ue] Rated Operational Voltage
- 600 V AC || 230 V DC
Local Signallingred indicator, 440...600 V
Poles Description3P
Cable Entry0.75 NPT (top and bottom)
Awg GaugeAWG 14...AWG 10 copper
Depth4.56 in
Network Number Of Phases3 phases
Control Typetoggle
Environment
- Product Certifications
- UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Nema Degree Of ProtectionNEMA 4 die cast zinc alloy standard size
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Not compliant
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
