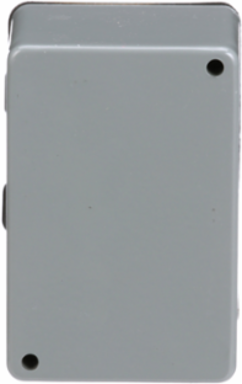

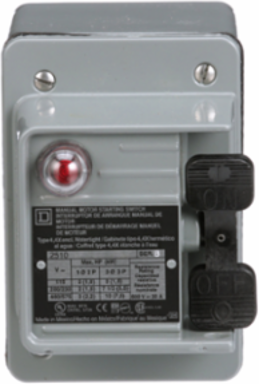

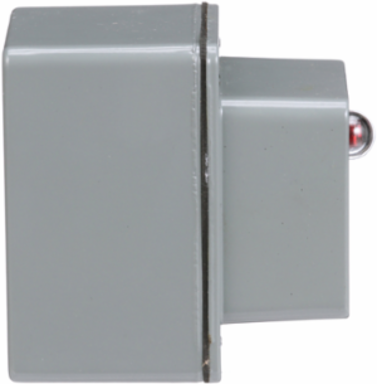

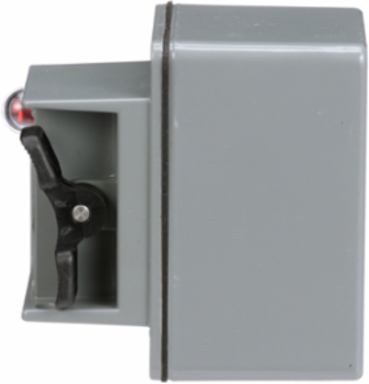

Square D 2510KW2B Manual Motor Switch 30A 3 Pole 10HP at 575VAC, NEMA 4 Enclosure
Square D 2510KW2B Manual Motor Switch 30A 3 Pole 10HP at 575VAC, NEMA 4 Enclosure
- MPN: 2510KW2B
- UPC: 785901849896
- PPN: SCH-2510KW2B
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$854.82/ EA
Description
2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switch is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This device has a 208 to 277 V red pilot light indicator. A NEMA 4 watertight and dusttight die cast zinc alloy enclosure is used to protect this manual motor switch. This enclosure has one conduit entry on the bottom. The 0.75 inch conduit entry is tapped with number 14 pipe threads. This device is 4.38 inches tall, 3.00 inches wide and 4.56 inches deep. A toggle handle is used to turn the manual starter on and off. The toggle handle can be padlocked in the off position. This device is UL Listed and CSA certified.
Specifications
Environment
- Product Certifications
- UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Nema Degree Of ProtectionNEMA 4 die cast zinc alloy standard size
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Not compliant
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Motor Starter Type
- non reversing
- Height
- 4.38 in
- Electrical Connection
- screw clamp terminals
- [In] Rated Current
- 30 A
- Width
- 3 in
- Motor Power Hp
- 2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
- [Ue] Rated Operational Voltage
- 600 V AC || 230 V DC
Local Signallingred indicator, 208...277 V
Poles Description3P
Cable Entry0.75 NPT (bottom)
Awg GaugeAWG 14...AWG 10 copper
Depth4.56 in
Network Number Of Phases3 phases
Control Typetoggle
Specifications
- Range Of Product
- K
Product Or Component TypeSingle Unit Manual Switch
