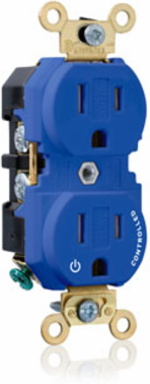

Leviton 5262-1PB 15 Amp Duplex Receptacle Outlet, Industrial Grade, Tamper-Resistant, 125 VAC

15 Amp Duplex Receptacle Outlet, Industrial Grade, Tamper-Resistant, 125 VAC
  • MPN: 5262-1PB
  • UPC: 078477706251
  • PPN: LEV-5262-1PB

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$46.21/ EA

Description

Duplex Receptacle Outlet, Extra Heavy-Duty Industrial Specification Grade, Split-Circuit, One Outlet Marked "Controlled", Tamper-Resistant, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Blue

Specifications

Standards and Certifications

ANSI
C-73
Certification/Listing
UL, CSA, NOM-ANCE
Applicable StandardsUL 498, CSA C22.2 No. 42, FedSpec W-C 596
NEMAWD-1 & WD-6

Material Specifications

Body Material
Nylon
Ground Clips
Brass
Line Contacts
Triple-Wipe .040" High Performance Brass Alloy
Terminal Clamp
Zinc-Plated Steel
Face MaterialNylon
Grounding ScrewBrass 8-32
Strap MaterialBrass .050"
Terminal ScrewsBrass 10-32

Mechanical Specifications

Product ID
Ratings are permanently marked on device
Terminal Accom.
14-10 AWG
Termination
Back or Side Wire
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Wire TypeSolid or Stranded Building Wire

Specifications

Country of Origin
Mexico
RoHS CompliantTrue

Product Features

Color
Blue
Feature
Split-circuit, One Outlet Marked Controlled|Tamper-Resistant|Smooth Face
Device TypeDuplex Receptacle Outlet
GradeExtra Heavy-Duty Industrial Specification Grade

Warranty

Warranty
10-Year Limited

Environmental Specifications

Flammability
Rated V-2 per UL 94
Operating Temperature-40°C to 75°C

Electrical Specifications

Amperage
15 A
Grounding
Self-Grounding
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Wire
3
Dielectric VoltageWithstands 2000V per UL498
Pole2
Voltage125 VAC

AC Horsepower Ratings

At Rated Voltage
1/2 HP
