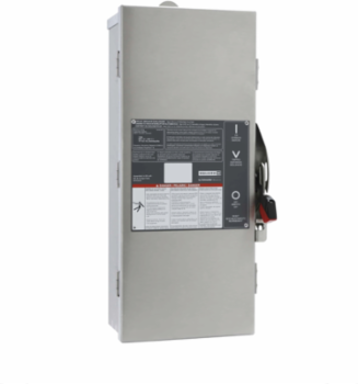

Square D B125DS PowerPacT B Circuit Breaker Enclosure, 15A-125A, Stainless Steel, NEMA 3/4/5, 19.5x9.13x4.88 Inch
Square D B125DS PowerPacT B Circuit Breaker Enclosure, 15A-125A, Stainless Steel, NEMA 3/4/5, 19.5x9.13x4.88 Inch
- MPN: B125DS
- UPC: 785901279457
- PPN: SCH-B125DS
- UNSPSC: 39121318
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3386.71/ EA
Description

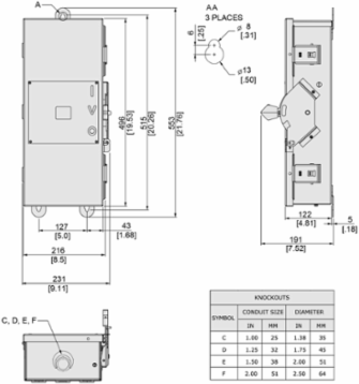

Industrial and residential Square D circuit breaker enclosures designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Provides a dead front housing for PowerPact B circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Enclosure acceptes 100% and 80%% rated It has 2 or 3 poles and 15A to 125A circuit breakers with different neutral assemly kits. The enclosures' maximum short circuit ratings are 65 kA at 600Y, 65 kA at 480 Vac, 100 kA at 240 Vac and 50 kA at 250 Vdc unless otherwise noted This NEMA 3, 3R, 4, 4X, 5, and 12 Type 304 Stainless Steel enclosure has dimensions as Height of 19.5 inch, Width of 9.13 inch and Depth of 4.88 inch. Provides NEC 100 compliant sealable equipment and Complies with NEC 240.30. cULus listed Meet the lock out/tag out requirements of OSHA 29 CFR 1910.147 subpart S. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Protect breaker from physical damage. Allow breaker operation without removing cover.
Features
- PowerPacT B circuit breaker enclosure 15 to 125A rated
- NEMA 4, 4X, and 5 (NEMA Type 304 stainless steel) indoor/outdoor, watertight, dust-tight, corrosionresistant enclosure
- Enclosure assepts BDL, BGL, BJL 2 and 3 poles breakers or BKL 2 poles breakers
- The short circuit current rating of the enclosed circuit breaker is equal to the rating of the circuit breaker installed
- Circuit breakers are ordered and shipped separately for field installation
- This enclosures are suitable for US service entrance equipment only
- PowerPacT B Type 1, 3, 4X and 12 enclosures are UL Listed to UL489 and CSA C22.2 No.5
Specifications
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Product Destination
- circuit-breaker B 2P or 3P 15-100 A, circuit-breaker B 2P or 3P 110-125 A, circuit-breaker B 2P 15-30 A
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 10 kg CO2 eq., 9.793661393562447
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 40 kg CO2 eq., 39.98103494590343
- Local Data Status
- Publishable
- Serviceability
- No
- Field Service Division
- PPIBS
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Enclosure Material
- stainless steel 304
- Halogen Free Status
- Halogen free plastic parts product
- Product Availability
- Stock - Normally stocked in distribution facility
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Stocking Flag
- Y
- Pep Code
- ENVPEP1408006EN
- Pep Verification Date
- 2025-09-25
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A41.9781200718666108, 2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.01148154781179601, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-11-13
TraceabilityNo
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Circuit Breaker TypeB-Frame
Energy Efficiency OptimizedFalse
Package Weight Lbs7.04 kg
ReturnabilityYes
Total Lifecycle Carbon Footprint52 kg CO2 eq.
Medium DescCircuit breaker enclosure, PowerPacT B, 15A to 125A, 2 and 3 poles, NEMA 3/3R/4/4X/5, stainless steel
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; United States, US
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; United States, US
Global Commercial StatusCommercialised
Environment Attributes Main
- EU ROHS Directive
- Compliant , Compliant
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 51.76429795914429
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1408006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
ROHS Exemption InformationYes
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP1408006EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-09-25
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Conformance Attributes
- Product Certifications
- UL Listed
Specifications
- Depth
- 124 mm
