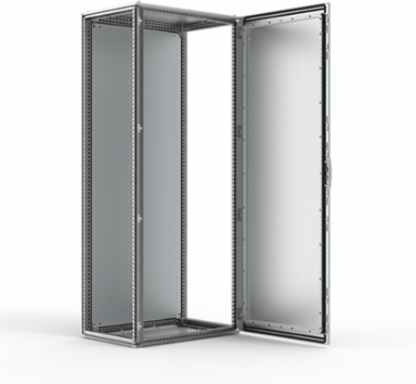

nVent Hoffman MCSS20086HP Modular Stainless Steel Single Door Enclosure 78.74 x 31.5 x 23.62 Inch
- MPN: MCSS20086HP
- UPC: 783510499730
- PPN: HOF-MCSS20086HP
- UNSPSC: 39121334
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Modular, Single Door, MCSS-HP maintains IP66/Type 4X rating and can be installed in severe environments. This Modular Single Door, MCSS-HP, MCSS20086HP item measures 2000x800x600mm with a material of Stainless Steel finish Brushed.
Features
- Delivery: Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
- Mounting requirements: For stand-alone installation, add side panels. For combined installation, HPPG01 and baying brackets, CCI and CCM are required.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
- Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
- Side panels: Supplied as an accessory.
- Roof panel: Removable.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
- Protection: Complies with IP 66, TYPE 4X, 12, IK 10.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Mounting plate is supplied, attached on the outside of the enclosure packaging.
- Material: AISI 304L pre-grained stainless steel / AISI 316L (on request). Frame: 1.5 mm. Door: 2 mm. Rear, roof and side panels: 1.5 mm. Bottom plates: 1.5 mm stainless steel. Mounting plate: 3 mm galvanized steel.
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
- Finish: 400s pre-grained stainless steel (0.5 microns average).
- Door: Mounted with four hinges, allowing left or right hand opening. Including door frame with 25 mm hole pattern.
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 800
- Max Mounting Depth
- 22
- Finish
- Brushed
- Door Thickness
- 2
- Material
- Stainless Steel
- Size
- 78.74 x 31.5 x 23.62 inch
- Construction
- Body: 16 gauge | Door: 14 gauge
- NEMA Rating
- NEMA Type 12 | NEMA Type 13 | NEMA Type 4X
Height (H)2,000
Depth (D)600
Protection RatingNEMA Type 12
Body Thickness1.5
Weight144.5
Cable EntryNo
ColorUnpainted
MountingFree Standing
