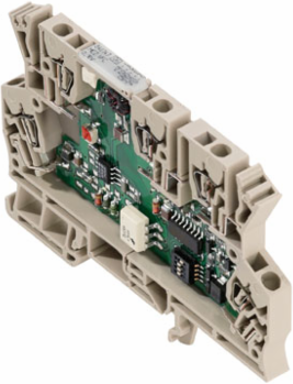

Weidmuller 8461490000 MCZ CFC 4-20MA
- MPN: 8461490000
- PPN: WDM-8461490000
CAD
$288.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

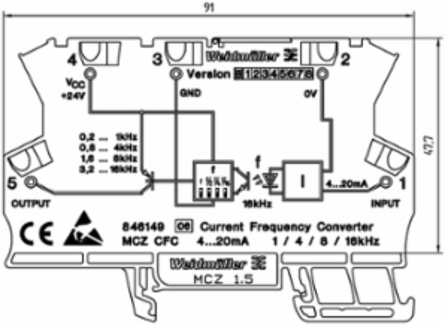

MCZ SERIES, DC/f transformer, f=: 0...1/ 4/ 8/ 16 kHz
Documentation & Downloads
Specifications
General Data
| Accuracy | 0.15 % v. FSR |
|---|---|
| Current-carrying capacity of cross-connect. | ≤ 20 A |
| Input/Output | DC/ f |
| Temperature coefficient | ≤ 250 ppm/K |
| Current consumption | 14 mA without load |
|---|---|
| Galvanic isolation | between input ⁄ output ⁄ supply |
| Rail | TS 35 |
| Voltage supply | 24 V DC ± 10 % |
Approvals
| Approvals | CE, EAC |
|---|
| ROHS | Conform |
|---|

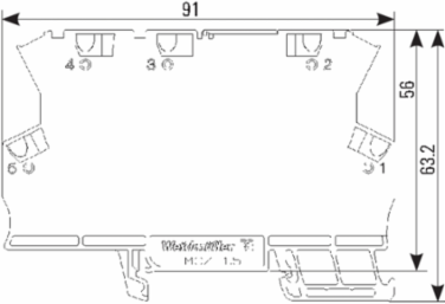

Dimensions And Weights
| Length | 91 mm |
|---|---|
| Width | 6 mm |
| Depth | 63.2 mm |
| Net weight | 28.3 g |
| Length (inches) | 3.583 inch |
|---|---|
| Width (inches) | 0.236 inch |
| Depth (inches) | 2.488 inch |
Connection Data
| Type of connection | Tension-clamp connection |
|---|---|
| Clamping range, min. | 0.5 mm² |
| Wire connection cross section AWG, min. | AWG 26 |
| Wire cross-section, solid, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire cross-section, finely stranded, min. (AWG) | AWG 26 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.5 mm² |
| Clamping range, rated connection | 1.5 mm² |
|---|---|
| Clamping range, max. | 1.5 mm² |
| Wire connection cross section AWG, max. | AWG 16 |
| Wire cross-section, solid, max. | 1.5 mm² |
| Wire connection cross section, finely stranded, max. | 1.5 mm² |
| Wire cross-section, finely stranded, max. (AWG) | AWG 16 |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 1.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 1.5 mm² |
Input
| Number of inputs | 1 |
|---|---|
| Input resistance, current | 50 Ω |
| Input current | 4...20 mA |
|---|---|
| Voltage drop | 5.8...6.4 V at 20 mA |
Classifications
| ETIM 6.0 | EC002918 |
|---|---|
| eClass 9.0 | 27-21-01-28 |
| eClass 10.0 | 27-21-01-28 |
| ETIM 7.0 | EC002918 |
|---|---|
| eClass 9.1 | 27-21-01-28 |
| UNSPSC | 31-12-10-07 |
Output
| Number of outputs | 1 |
|---|---|
| Output level | PNP, Ub-0.7 V |
| load impedance current | ≤ 600 Ω |
| Output frequency | 0...1/ 4/ 8/ 16 kHz |
|---|---|
| Output current | max. 20 mA |
| Status indicator | LED, pulsing |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Clearance & creepage distances | ≥ 2 mm |
|---|---|
| Galvanic isolation | between input ⁄ output ⁄ supply |
| Insulation voltage | 1 kV DC |
| Pollution severity | 2 |
| Surge voltage category | III |
| EMC standards | EN 55011, EN 61000-6 |
|---|---|
| Impulse withstand voltage | 1.5 kV |
| Insulation voltage input or output/rail | 4 kVeff / 1 min. |
| Rated voltage | 100 V |
Temperatures
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | 0 °C...50 °C |
| Operating temperature, min. | 0 °C |
|---|---|
| Storage temperature, min. | -20 °C |
| Storage temperature | -20 °C...85 °C |
