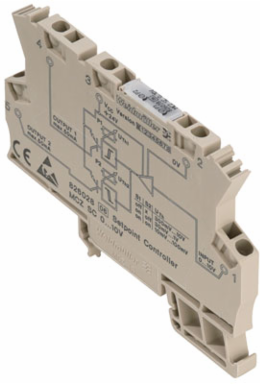

Weidmuller 8227350000 MCZ SC 0-20MA
- MPN: 8227350000
- PPN: WDM-8227350000
CAD
$215.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
MCZ SERIES, Limit value monitoring, 0.5...20 mA, 1, 2, Tension-clamp connection
Documentation & Downloads
Specifications
General Data
| Configuration | Potentiometer |
|---|---|
| Galvanic isolation | Without isolation |
| Step response time | < 250 µs (switching threshold at 90% of max. input signal; RI ≤ 1 kΩ) |
| Voltage supply | 24 V DC ± 20 % |
| Current consumption | 15 mA |
|---|---|
| Rail | TS 35 |
| Temperature coefficient | max. 250 ppm/K |
Probability Of Failure
| MTTF | 681 Years |
|---|
Approvals
| Approvals | CE, CSA, cURus, EAC |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Dimensions And Weights

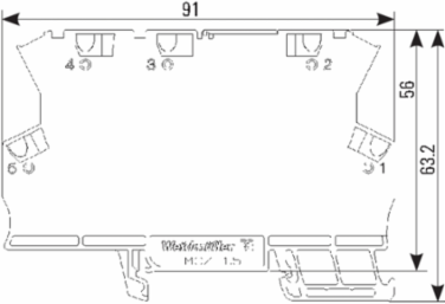

| Length | 91 mm |
|---|---|
| Width | 6 mm |
| Depth | 63.2 mm |
| Weight | 30 g |
| Length (inches) | 3.583 inch |
|---|---|
| Width (inches) | 0.236 inch |
| Depth (inches) | 2.488 inch |
| Net weight | 28 g |
Connection Data
| Type of connection | Tension-clamp connection |
|---|---|
| Clamping range, min. | 0.5 mm² |
| Clamping range, rated connection | 1.5 mm² |
|---|---|
| Clamping range, max. | 1.5 mm² |
Rated Data Ul
| Certificate No. (cURus) | E141197 |
|---|
Tender Specification Sheets

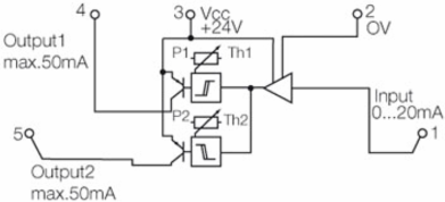

| Long specification | Trip amplifier for monitoring a 0...20 mA standard signal with two switching outputsTrip amplifier in 6 mm width for analogue 0...20 mA standard signals with two PNP-transistor switch outputs for monitoring an upper and lower threshold (adjustable via potentiometer). Dimensions: L/W/H 91/ 6/ 63.2 mm Tension-clamp connection / Nominal cross-section 1.5 mm2Protection degree: IP 20 Input 0.5...20 mAOutput Double switching output PNP/ 50 mA per channel Adjustable via potentiometerSwitching hysteresis 1 % of input Step response time < 250 us (10...90 %)Temperature coefficient < 250 ppm KAuxiliary power 24 V DC +/- 20 % Ambient temperature range 0°C...+50 °CApprovals cURus, CSA Type MCZ SC 0-20MA |
|---|
| Short specification | Trip amplifier for monitoring a 0...20 mA standard signal with two switching outputsTrip amplifier in 6 mm width for analogue 0...20 mA standard signals with two PNP-transistor switch outputs for monitoring an upper and lower threshold (adjustable via potentiometer). |
|---|
Input
| Number of inputs | 1 |
|---|---|
| Input resistance, current | 50 Ω |
| Input current | 0.5...20 mA |
|---|---|
| Voltage drop | 1 V |
Classifications
| ETIM 6.0 | EC002654 |
|---|---|
| eClass 9.0 | 27-21-01-22 |
| eClass 10.0 | 27-21-01-22 |
| ETIM 7.0 | EC002654 |
|---|---|
| eClass 9.1 | 27-21-01-22 |
| UNSPSC | 30-21-19-17 |
Output
| Number of outputs | 2 |
|---|---|
| Contact assembly | double switch output PNP |
| Cut-off frequency (-3 dB) | 100 Hz |
|---|---|
| Switching thresholds | Via 2 potentiometers (12 turns) |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| EMC standards | EN 55011, EN 61000-6 |
|---|---|
| Insulation voltage input or output/rail | 4 kVeff / 1 min. |
| Galvanic isolation | Without isolation |
|---|
Temperatures
| Humidity | 40 °C / 93 % rel. humidity, no condensation |
|---|---|
| Operating temperature, min. | 0 °C |
| Storage temperature, min. | -25 °C |
| Storage temperature | -25 °C...60 °C |
| Operating temperature, max. | 50 °C |
|---|---|
| Storage temperature, max. | 60 °C |
| Operating temperature | 0 °C...50 °C |
