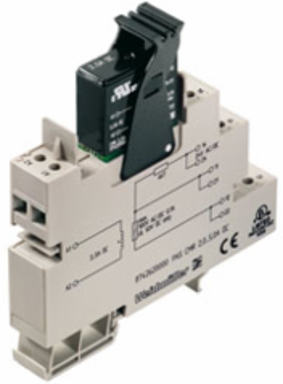

Weidmuller 8742610000 Current Monitoring Relay 0.5-2.5 A DC, Screw Connection, 92 mm Length
- MPN: 8742610000
- PPN: WDM-8742610000
CAD
$51.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Current monitoring, 0.5...2.5 A DC, Screw connection
Documentation & Downloads
Specifications
General Data
| Configuration | none |
|---|---|
| Rail | TS 35 |
| Galvanic isolation | Without isolation |
|---|
Approvals
| Approvals | CE, CULUS |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 92 mm |
|---|---|
| Width | 15.3 mm |
| Depth | 95 mm |
| Weight | 70 g |
| Length (inches) | 3.622 inch |
|---|---|
| Width (inches) | 0.602 inch |
| Depth (inches) | 3.74 inch |
| Net weight | 69.6 g |

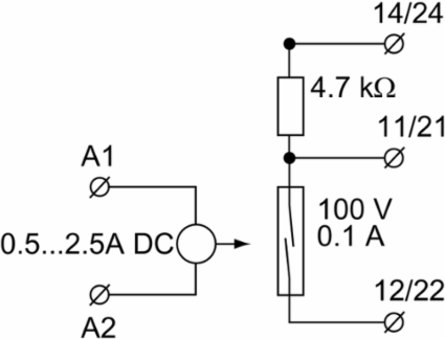

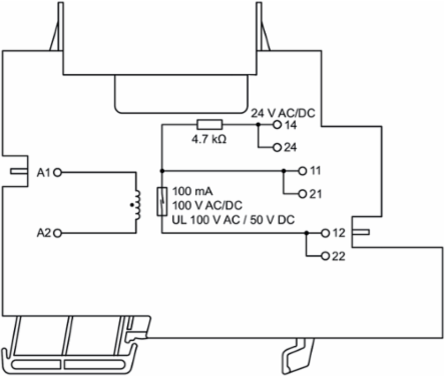

Output (Digital)
| Max. switching voltage, DC | 100 V |
|---|---|
| Continuous current | 100 mA |
| Max. switching voltage, AC | 100 V |
|---|---|
| Contact material | RH/Rd (Reed contact)* |
Connection Data
| Type of connection | Screw connection |
|---|---|
| Clamping range, min. | 2.5 mm² |
| Clamping range, rated connection | 1.5 mm² |
|---|---|
| Clamping range, max. | 2.5 mm² |
Tender Specification Sheets
| Long specification | Limit-value monitoring of DC currents up to 2.5 A with switching outputlimit-value monitoring component for measuring DC currents 0.5... 2.5 A withswitching output. The monitoring unit is designed so that it can be plugged onto the mounting base.Pluggable unit on base, for mounting on TS35 DIN rail Dimensions: L/W/H 92/ 15.3/ 95 mmScrew connection / Nominal cross-section 2.5 mm2Protection degree: IP 20Input 0.5...2.5 A DC / Reed relay coilSwitch-on threshold < 500 mASwitch-off threshold < 50 mAOutput 1 NO / Reed contactSwitching current max 100 mA AC/DCSwitching voltage 100 V AC / 50 V DCAmbient temperature range 0 °C...+55 °C Secure isolation EN 50178, 2-way isolation up to 6 kVTest voltage 4 kVeff / 1 min. input against outputRated voltage 300 V AC/DC at overvoltage category III and pollution degree 2Approvals cULusType PAS CMR 0.5...2.5 A DC |
|---|
| Short specification | Limit-value monitoring of DC currents up to 2.5 A with switching outputlimit-value monitoring component for measuring DC currents 0.5... 2.5 A withswitching output. The monitoring unit is designed so that it can be plugged onto the mounting base. |
|---|
Input
| Input current | 0.5...2.5 A DC |
|---|---|
| Pulse duration | min. 1 ms |
| Input resistance, current | < 50 mΩ |
|---|
Classifications
| ETIM 6.0 | EC002654 |
|---|---|
| eClass 9.0 | 27-21-01-22 |
| eClass 10.0 | 27-21-01-22 |
| ETIM 7.0 | EC002654 |
|---|---|
| eClass 9.1 | 27-21-01-22 |
| UNSPSC | 30-21-19-17 |
Insulation Coordination
| Clearance & creepage distances | ≥ 5 mm (grout encapsulated) |
|---|---|
| Galvanic isolation | Without isolation |
| Insulation voltage | 4 kVeff / 1 min. |
| Rated voltage | 300 V |
| EMC standards | EN 55011, EN 61000-6-1, 2, 3, 4 |
|---|---|
| Impulse withstand voltage | 6 kV |
| Pollution severity | 2 |
| Surge voltage category | III |
Temperatures
| Humidity | 5-95% relative humidity, Tu = 40°C, without condensation |
|---|---|
| Operating temperature, min. | 0 °C |
| Storage temperature, min. | -40 °C |
| Storage temperature | -40 °C...85 °C |
| Operating temperature, max. | 55 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | 0 °C...55 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E141197 |
|---|
