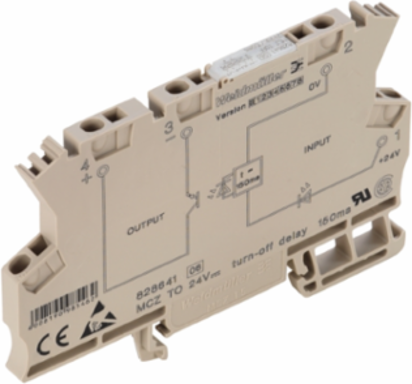

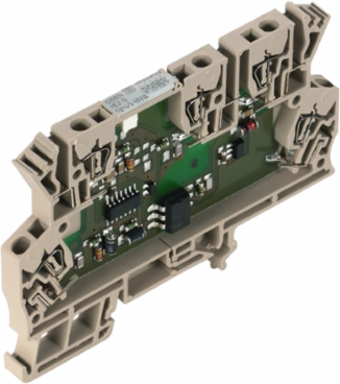

Weidmuller 8286410000 MCZ TO 24VDC/150MS
- MPN: 8286410000
- PPN: WDM-8286410000
CAD
$112.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
MCZ SERIES, Pulse stretcher, Number of contacts: 1, NO contact, Rated control voltage: 24 V DC ±10 %, Continuous current: 20 mA, Tension-clamp connection
Documentation & Downloads
Specifications
General Data
- Rail
- TS 35
- Mechanical switch position indicator
- No
- Colour
- beige
Test buttonNo
Open sidesright
Approvals
- Approvals
- CE, CSA, cURus, EAC
- UL File Number Search
- E141197
ROHSConform

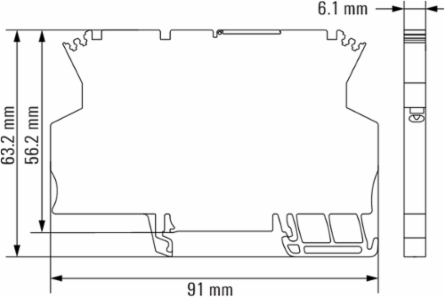

Dimensions And Weights
- Width
- 6.1 mm
- Height
- 91 mm
- Depth
- 63.2 mm
- Net weight
- 22.5 g
Width (inches)0.24 inch
Height (inches)3.583 inch
Depth (inches)2.488 inch
Connection Data
- Wire connection method
- Tension-clamp connection
- Clamping range, rated connection
- 1.5 mm²
- Clamping range, max.
- 1.5 mm²
- Wire connection cross section AWG, max.
- AWG 16
- Wire cross-section, solid, max.
- 1.5 mm²
- Wire connection cross section, finely stranded, max.
- 1.5 mm²
- Wire cross-section, finely stranded, max. (AWG)
- AWG 16
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
- 1.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), max.
- 1.5 mm²
Stripping length, rated connection8 mm
Clamping range, min.0.5 mm²
Wire connection cross section AWG, min.AWG 26
Wire cross-section, solid, min.0.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire cross-section, finely stranded, min. (AWG)AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.0.5 mm²
Blade size0.6 x 3.5 mm
Rated Data Ul
- Certificate No. (cURus)
- E141197
Contact Data
- Contact type
- 1 NO contact (Transistor)
Input
- Rated control voltage
- 24 V DC ± 10 %
- Power rating
- 160 mW
- Protective circuit
- Reverse polarity protection
Rated current DC6.7 mA ±10 %
Status indicatorGreen LED
Min. pulse duration3.5 ms
Classifications
- ETIM 6.0
- EC001439
- eClass 9.0
- 27-37-16-05
- eClass 10.0
- 27-37-16-05
ETIM 7.0EC001439
eClass 9.127-37-16-05
UNSPSC30-21-19-17
Output
- Rated switching voltage
- 5...48 V DC
- Continuous current
- 20 mA
- Switch-off delay
- 150 ms
Max. switching voltage, DC48 V
Inrush current200 mA
Max. switching frequency at rated load3 Hz
Product Information
- Product information
- The cable lengths must not exceed 30 m.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Rated voltage
- 300 V
- Pollution severity
- 2
- Creepage and clearance distance input – output
- ≥ 5.5 mm
- Impulse withstand voltage
- 6 kV (1.2/50 µs)
Surge voltage categoryIV
Dielectric strength, Input/Output1 kVeff / 1 s
Dielectric strength to mounting rail4 kVeff / 1 Min.
Temperatures
- Humidity
- 40 °C / 93 % rel. humidity, no condensation
- Operating temperature, min.
- -25 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...85 °C
Operating temperature, max.50 °C
Storage temperature, max.85 °C
Operating temperature-25 °C...50 °C
Further Details Of Approvals / Standards
- Standards
- UL508
- Certificate No. (cURus)
- E141197
Certificate No. (CSA)154685-1198742
