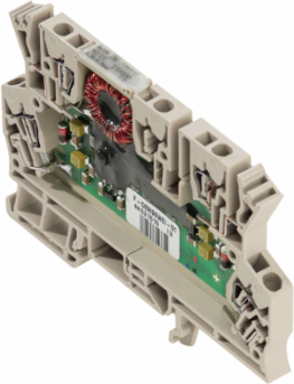

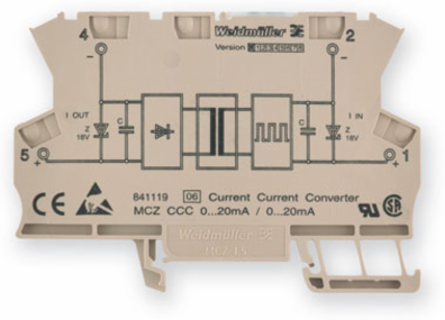

Weidmuller 8411190000 MCZ CCC 0-20MA/0-20MA
- MPN: 8411190000
- PPN: WDM-8411190000
CAD
$278.96
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

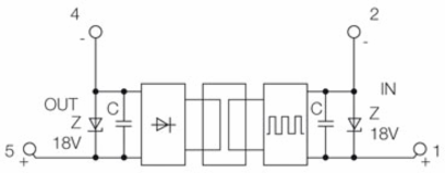

MCZ SERIES, Passive isolator
Documentation & Downloads
Specifications
General Data
- Accuracy
- < 0.1 % of end value
- Galvanic isolation
- between input/output
- Rail
- TS 35
- Voltage supply
- via the input measuring circuit
Configurationnone
Input/Output0(4)...20 mA/0(4)...20 mA
Temperature coefficient≤ 50 ppm/K of measured value at 0 Ω load resistance
Approvals
- Approvals
- CE, CSA, cURus, EAC
- UL File Number Search
- E141197
ROHSConform
Dimensions And Weights

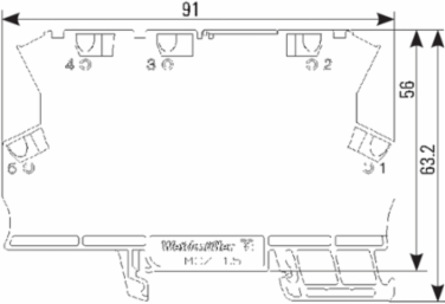

- Length
- 91 mm
- Width
- 6 mm
- Depth
- 63.2 mm
- Net weight
- 44.3 g
Length (inches)3.583 inch
Width (inches)0.236 inch
Depth (inches)2.488 inch
Connection Data
- Type of connection
- Tension-clamp connection
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 26
- Wire cross-section, solid, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.5 mm²
Clamping range, rated connection1.5 mm²
Clamping range, max.1.5 mm²
Wire connection cross section AWG, max.AWG 16
Wire cross-section, solid, max.1.5 mm²
Wire connection cross section, finely stranded, max.1.5 mm²
Wire cross-section, finely stranded, max. (AWG)AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.1.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.1.5 mm²
Rated Data Ul
- Certificate No. (cURus)
- E141197
Tender Specification Sheets
- Long specification
- Standard signal passive isolator, input-loop powered1-channel passive isolator in 6 mm width input-loop powered,for transmitting and isolating analogue DC current signals 0/4...20 mA.Add-on housing for TS35 rail mountingDimensions: L/W/H 91/ 6/ 63.2 mmTension-clamp connection / Nominal cross-section 1.5 mm2Protection degree: IP 20 Input 0/4...20 mAVoltage drop 2.5... 3 V at 20 mAOutput 0/4...20 mALoad resistance < 500 OhmTransmission error < 0,1 % v. E.Auxiliary power 0/4...20 mA input current loopAmbient temperature range -25 °C...+60 °CIsolation EN 50178 , 2-way isolation up to 510 VeffApprovals cURus, CSAType MCZ CCC 0-20mA/0-20mA
Short specificationStandard signal passive isolator, input-loop powered1-channel signal passive isolator in 6 mm width with input current loop feed,for transmitting and isolating analogue DC current signals from 0/4 to 20 mA
Input
- Number of inputs
- 1
- Pick-up current
- < 100 µA
Input current0(4)...20 mA current loop
Voltage drop2.5....3 V at 20 mA
Classifications
- ETIM 6.0
- EC002653
- eClass 9.0
- 27-21-01-20
- eClass 10.0
- 27-21-01-20
ETIM 7.0EC002653
eClass 9.127-21-01-20
UNSPSC31-12-10-07
Output
- Number of outputs
- 1
- Cut-off frequency (-3 dB)
- 100 Hz
Output current0...20 mA, 4...20 mA
load impedance current≤ 500 Ω
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- EMC standards
- EN 61000-6
- Pollution severity
- 2
- Surge voltage category
- I
Galvanic isolationbetween input/output
Rated voltage100 V
Temperatures
- Operating temperature, max.
- 60 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- -25 °C...60 °C
Operating temperature, min.-25 °C
Storage temperature, min.-40 °C
Storage temperature-40 °C...85 °C
