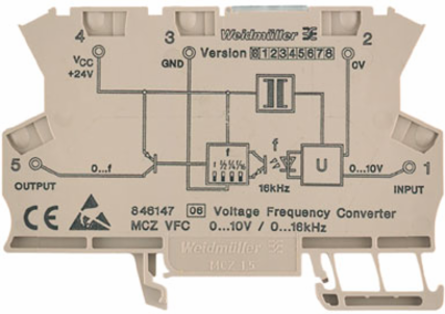

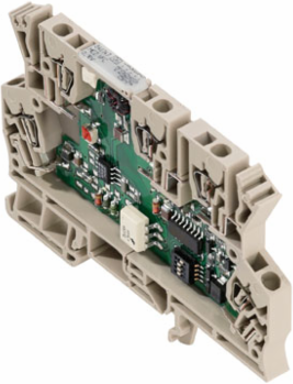

Weidmuller 8461470000 MCZ VFC 0-10V
- MPN: 8461470000
- PPN: WDM-8461470000
CAD
$316.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
MCZ SERIES, DC/f transformer, f=: 0...1/ 4/ 8/ 16 kHz
Documentation & Downloads
Specifications
General Data
- Accuracy
- 0.2 % v. FSR
- Current consumption
- 14 mA without load
- Galvanic isolation
- between input ⁄ output ⁄ supply
- Rail
- TS 35
- Voltage supply
- 24 V DC ± 10 %
ConfigurationDIP switch
Current-carrying capacity of cross-connect.≤ 20 A
Input/OutputDC/ f
Temperature coefficient≤ 250 ppm/K
Approvals
- Approvals
- CE, EAC
ROHSConform

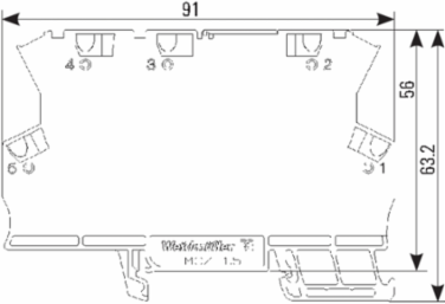

Dimensions And Weights
- Length
- 91 mm
- Width
- 6 mm
- Depth
- 63.2 mm
- Net weight
- 28.4 g
Length (inches)3.583 inch
Width (inches)0.236 inch
Depth (inches)2.488 inch
Connection Data
- Type of connection
- Tension-clamp connection
- Clamping range, min.
- 0.5 mm²
- Wire connection cross section AWG, min.
- AWG 26
- Wire cross-section, solid, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded, min.
- 0.5 mm²
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.5 mm²
Clamping range, rated connection1.5 mm²
Clamping range, max.1.5 mm²
Wire connection cross section AWG, max.AWG 16
Wire cross-section, solid, max.1.5 mm²
Wire connection cross section, finely stranded, max.1.5 mm²
Wire cross-section, finely stranded, max. (AWG)AWG 16
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.1.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.1.5 mm²
Tender Specification Sheets
- Long specification
- DC/f converter for converting a 0...10 V standard signal to 0...1/ 4/ 8/ 16 kHz, configured with DIP switchesDC/f converter in 6 mm width with external power supply for transmitting and converting a 0...10 V standard signal into a proportional 0...1/ 4/ 8/ 16 kHz rectangular frequency. The input and output circuits are electrically isolated. Add-on housing for TS35 rail mounting Dimensions: L/W/H 91/ 6/ 63.2 mm Tension-clamp connection / Nominal cross-section 1.5 mm2Protection degree: IP 20 Input 0...10 VOutput 0...1 kHz/ 4 kHz/ 8 kHz/ 16 kHz PNP: UB - 0.7V / max. 20 mATransmission error < 0,2 % v. E. Temperature coefficient < 250 ppm KAuxiliary power 24 V DC +/- 10 % Ambient temperature range 0°C...+50 °C Isolation 1.5 kV Rated voltage 100 V Overvoltage category III pollution degree 2 Type MCZ VFC 0-10V
Short specificationDC/f converter for converting a 0...10 V standard signal to 0...1/ 4/ 8/ 16 kHz, configured with DIP switchesDC/f converter in 6 mm width with external power supply, for transmitting and converting a 0...10 V standard signals into a proportional 0...1/ 4/ 8/ 16 kHz rectangular frequency. The input and output circuits are electrically isolated.
Input
- Number of inputs
- 1
- Input resistance, voltage
- 100 kΩ
Input voltage0...10 V
Classifications
- ETIM 6.0
- EC002918
- eClass 9.0
- 27-21-01-28
- eClass 10.0
- 27-21-01-28
ETIM 7.0EC002918
eClass 9.127-21-01-28
UNSPSC31-12-10-07
Output
- Number of outputs
- 1
- Output level
- PNP, Ub-0.7 V
- load impedance current
- ≤ 600 Ω
Output frequency0...1/ 4/ 8/ 16 kHz
Output currentmax. 20 mA
Status indicatorLED, pulsing
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Clearance & creepage distances
- ≥ 1.5 mm
- Galvanic isolation
- between input ⁄ output ⁄ supply
- Insulation voltage
- 1 kV DC
- Pollution severity
- 2
- Surge voltage category
- III
EMC standardsEN 55011, EN 61000-6
Impulse withstand voltage1.5 kV
Insulation voltage input or output/rail4 kVeff / 1 min.
Rated voltage100 V
Temperatures
- Operating temperature, max.
- 50 °C
- Storage temperature, max.
- 85 °C
- Operating temperature
- 0 °C...50 °C
Operating temperature, min.0 °C
Storage temperature, min.-20 °C
Storage temperature-20 °C...85 °C
