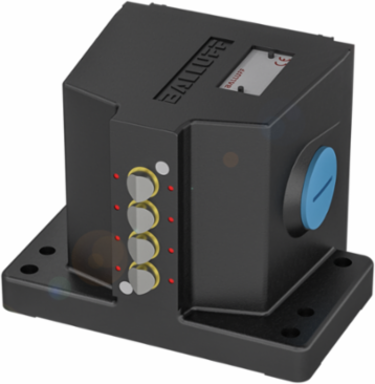

Balluff BNS 813-D02-E12-100-22-02-FC Mechanical multiple position limit switches with safety switch positions - BNS00RE
- MPN: BNS 813-D02-E12-100-22-02-FC
- PPN: BAL-BNS00RE
CAD
$1238.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mechanical multiple position limit switches with safety switch positions - BNS00RE
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Hungary
- Housing material
- Aluminum, Anodized
- Version
- Safety EN 60204-1
- Continuous current
- 1-2. Switch position: 6 A
- Installation
- Vertical
- Approach speed
- 1-2. Switch position: 30 m/min
- Connection type
- 1-2. Switch position: Screw terminal
- IP rating per IEC 60529
- IP67
Dimension120 x 70 x 83 mm
Number of switching positions2x E-chisel
Operating principle1-2. Switch position: Mechanical
Rated operating voltage Ue1-2. Switch position: 250 VAC
Approach directionlongitudinal, parallel to attachment surface
Switch position spacing12 mm
Ambient temperature-5...85 °C
Approval/ConformityCE; UKCA; CCC; WEEE
