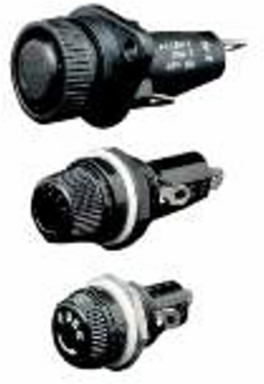

Mersen GPM-A1 Panel Mount Fuse Holder 5x20mm 10A 250VAC 600VDC with Thermoplastic Body
- MPN: GPM-A1
- UPC: 782001360313
- PPN: FER-GPM-A1
CAD
$15.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mersen GPM Panel Mount Fuse Holders are in sizes to accommodate 5x20 mm, 1/4"x1-1/4", Class CC and Midget (1-1/2"x13/32") fuses. All 30A holders have glass-filled polyester insulators for extra dependability and trouble-free installation. Patented design allows same body to accept screw or bayonet knob. Flange design allows front or rear mounting. The 10A and 15A holders are for front mounting only.
Specifications
Product Details
- SCCR
- 100kA/200kA
- Materials Contact
- Tin-plated Copper
- Body Material
- Thermoplastic Polycarbonate
- Lead Free
- Consult Technical Services
- DC Voltage
- 600 VDC
- AC Voltage Range
- 250 - 600 VAC
- Ampere Range
- 15 - 30 A
CE conformityConsult Technical Services
StandardsUL Recognized Component to standard 4248-1, File E52283 CSA Certified, Class 6225, File 32169 UL Recognized Component to standard 4248-1, File E118864 CSA Certified, Class 908501, File AP82191
Connection Terminal Type1/4" Quick Connect / Solder 1/4" Quick Connect / Solder, Right Angle Solder Solder, Right Angle 3/16" Solder / QC 1/4" Solder / QC Quick Connect
ROHS CompliantConsult Technical Services
MountingPanel Mount
Number of Poles1
