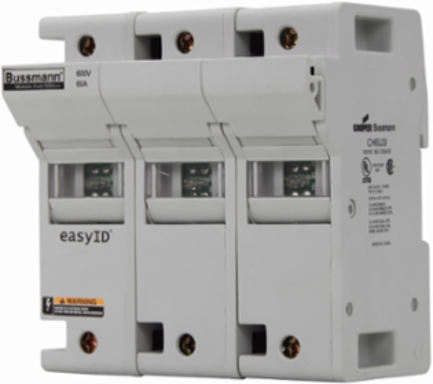

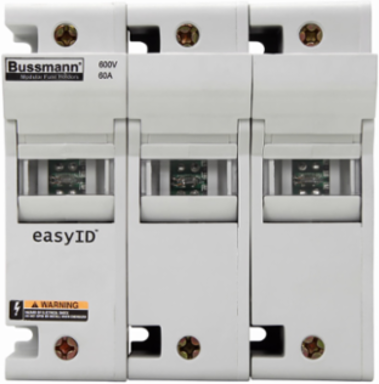

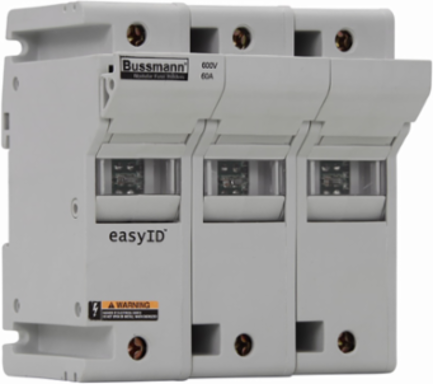

Bussmann CH60J3I Modular Fuse Holder 600 Vac, 600 Vdc, 60A, Three-pole, 4.88 Inch Height
- MPN: CH60J3I
- UPC: 051712630948
- PPN: BUS-CH60J3I
CAD
$195.85
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Modular Fuse Holder 600 Vac, 600 Vdc, 60A, Three-pole, 4.88 Inch Height
Features
- The Bussmann CH60J3I is a premium 3-pole, 60-Amp Class J fuse holder designed specifically for 600V Class J fuses. It provides a secure, modular mounting point for 3-phase overcurrent protection, making it a critical interface for industrial motor branches and power distribution in Canadian manufacturing facilities.
- The "I" in the part number signifies that this unit features open-circuit indication. Each pole contains an integrated neon lamp that illuminates when a fuse clears. This allows maintenance personnel to identify the exact failed phase at a glance, significantly reducing troubleshooting downtime and enhancing safety in high-voltage environments.
- Engineered for maximum workplace safety, the CH60J3I is IP20 "finger-safe", protecting technicians from accidental contact with live terminals. The pull-out drawer design allows for tool-free, isolated fuse replacement, which is essential for adhering to CSA Z462 electrical safety standards during routine maintenance.
- This holder is designed for rapid installation on a standard 35mm DIN rail, though it can also be screw-mounted to a back panel. Its compact, 3-pole mono-block construction saves significant "real estate" compared to using three individual fuse blocks, helping Canadian panel builders keep electrical enclosures organized and compact.
- The Bussmann CH60J3I is fully CSA Certified and UL Listed. When paired with Class J fuses, it supports a massive 200kA Short-Circuit Current Rating (SCCR), ensuring your equipment meets the rigorous safety requirements of the Canadian Electrical Code (CEC) and is protected against severe fault events.
Documentation & Downloads
Specifications
Additional
- Amperage
- 60A
- Number of Poles
- Three-pole
- Class
- Class J
- Height
- 4.88 in
- Width
- 3.31 in
- Mounting
- 35 mm DIN rail, panel
- Compliance
- RoHS Compliant, CE Marked, UL Listed, CSA Certified
Voltage600 Vac, 600 Vdc
Operating Temperature85 0C
TypeModular fuse holder
Length/Depth4.72 in
Weight1.7 lb
MaterialThermoplastic housing, Tin-plated copper clip
