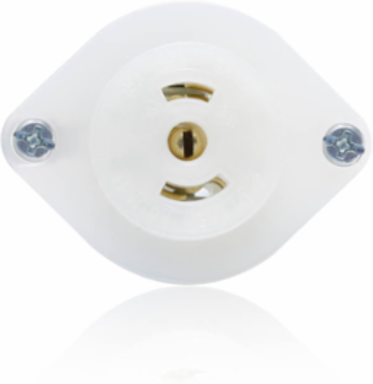

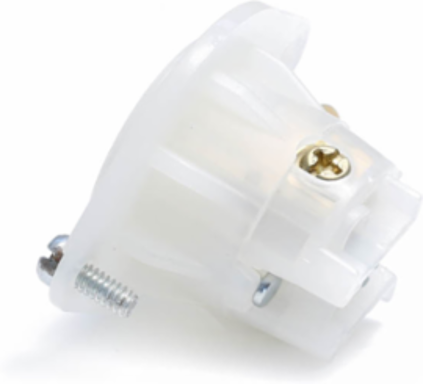

Leviton ML2-PER Mini Flanged Locking Receptacle, 15 Amp, 125 Volt, Impact Modified Nylon, White
Leviton ML2-PER Mini Flanged Locking Receptacle, 15 Amp, 125 Volt, Impact Modified Nylon, White
- MPN: ML2-PER
- UPC: 078477987322
- PPN: LEV-ML2-PER
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$40.77/ EA
Description

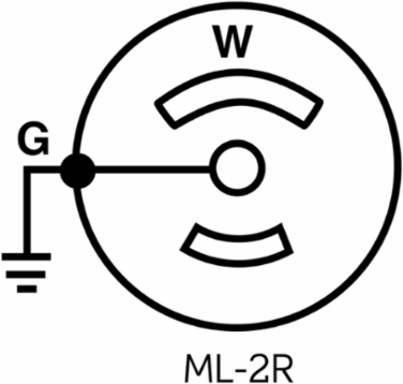

15 Amp, 125 Volt, NEMA ML-2R, 2P, 3W, Flanged Outlet Locking Receptacle, Industrial Grade, Grounding, MiniLock - WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13399
- Warranty
- Limited Lifetime Warranty Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL498File E13399
Material Specifications
- Body Material
- Impact Modified Nylon
- Face Material
- Nylon
- Line Contacts
- Brass .035 Thick
- Terminal Screws
- Brass 10-32
ColorWhite
Grounding ScrewBrass 8-32
Strap MaterialThermoplastic Nylon
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-14 AWG
- Termination
- Back
Screw Terminal Torque10-12 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Torque Range10-12 in-lbs
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- Black and White
Device TypeLocking Flanged Outlet
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated HB or better UL94
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
