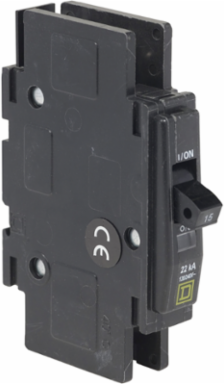

Square D QOU115HM Mini circuit breaker, QOU, 15A, 1 pole, 120/240 VAC, 10kA, high magnetic
Square D QOU115HM Mini circuit breaker, QOU, 15A, 1 pole, 120/240 VAC, 10kA, high magnetic
- MPN: QOU115HM
- UPC: 785901371441
- PPN: SCH-QOU115HM
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$124.43/ EA
Description
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.QOU breakers Provided with High magnetic trip for applications with high inrush current can occur. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting.
Specifications
Environment
- Product Certifications
- IEC || CSA || UL listed
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Circularity ProfileN/A
Mercury FreeYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Height
- 4.05 in
- Tightening Torque
- 45-45 lbf.in AWG 14...AWG 2)
- Awg Gauge
- AWG 14...AWG 2 aluminum/copper
- Electrical Connection
- slotted box lugs, line side || slotted box lugs, load side
- [Ue] Rated Operational Voltage
- 120/240 V AC
Mounting Modeunit mount
[In] Rated Current15 A
Width0.75 in
Depth2.95 in
Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- high magnetic
Range Of ProductQOU
Product Or Component Typeminiature circuit-breaker
