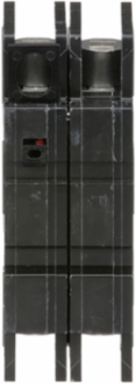

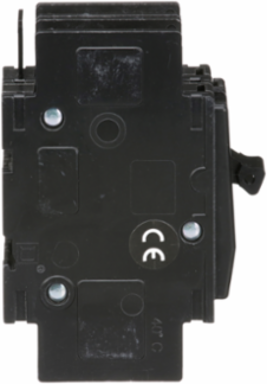

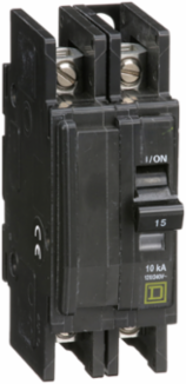

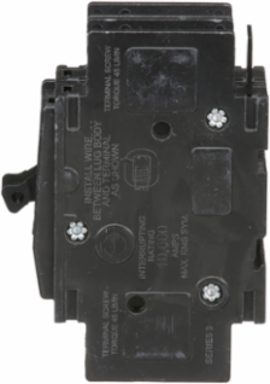

Square D QOU215 Miniature Circuit Breaker 15A 2 Pole 120/240V AC 10kA 2.95 Inch Depth
- MPN: QOU215
- UPC: 785901418658
- PPN: SCH-QOU215
CAD
$258.74
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 15A, 240VAC. This circuit breaker provides 10 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA.
Features
- Engineered for maximum versatility, the QOU215 features a unique "unit mount" design with integrated mounting feet, allowing for direct installation on a flat surface or DIN rail. This eliminates the need for a traditional breaker panel, making it the ideal space-saving solution for OEM control panels, HVAC equipment, and localized electrical disconnects.
- This 15-amp, double-pole thermal-magnetic circuit breaker provides reliable overcurrent and short-circuit protection for 120/240V AC circuits. By monitoring both "hot" legs simultaneously, it ensures that if a fault occurs on either line, both poles trip instantly, preventing equipment damage and ensuring the safety of your sensitive electrical components.
- Designed with field-flexibility in mind, the QOU215 supports "point-of-use" wiring with reversible line and load connections. This allows technicians to feed power from either the top or bottom, significantly simplifying cable management in tight enclosures and reducing the labor time required for custom industrial wiring projects.
- Equipped with rugged box-type lugs, the QOU215 ensures a high-pressure, low-resistance connection for both copper and aluminum conductors. This secure mechanical clamping prevents terminal overheating and wire loosening caused by thermal expansion or vibration, maintaining the integrity of your electrical system in high-use commercial environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|

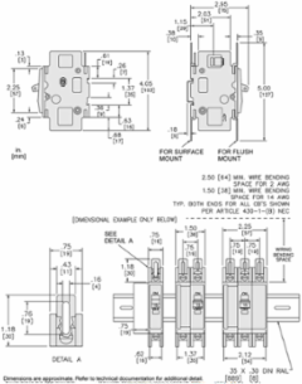

| Depth | 2.95 in |
|---|
Complementary Attributes
| Line Rated Current | 15 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM |
|---|---|
| Electrical Connection | slotted box lugs, line side, slotted box lugs, load side |
| [Ue] Rated Operational Voltage | 120/240 V AC, 120 V AC48 V DC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0307116528 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 1 kg CO2 eq., 0.9816617577 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Energy Efficiency Optimized | False |
| Number Of Poles | 2P |
| Product Or Component Type | miniature circuit-breaker |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 18 kg CO2 eq. |
| Pep Code | ENVPEP2111016EN |
| Pep Verification Date | 2021-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Mexico |
| Energy Model - Use [B6] | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Height Nominal | 4.05 in |
| Short-circuit Current | 10 kA |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536200040 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer |
|---|---|
| Certificate Agency | UL Listed, CSA, IEC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0216759378, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0000419652, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 17 kg CO2 eq., 17.3042434783 |
| Local Publishable Date | 2026-03-26 |
| Stocking Flag | Y |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2534 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Awg Gauge | 14 AWG...2 AWG aluminium/copper |
| Circuit Breaker Type | standard |
| Mounting Mode | unit mount |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QOU |
| Software Version | EIME v5.9.1 |
| Tightening Torque | 45-45 lbf.in (14 AWG...2 AWG) |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 24.8784 |
| Energy Model - Installation [A5] | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Width Nominal | 1.5 in |
| Halogen-free Status | Halogen free product |
| Package Weight(Lbs) | 168 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Halogene Performance | Halogen free product |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 18.3383347918 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2021-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2111016EN |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2111016EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | miniature circuit-breaker |
|---|
| Range Of Product | QOU |
|---|
ETIM
| ETIM 8 | EC000042 |
|---|
| ETIM 9 | EC000042 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
