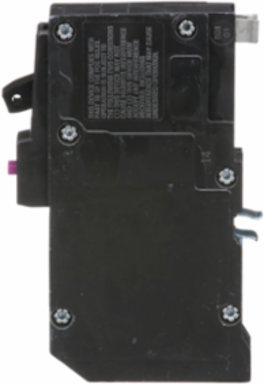

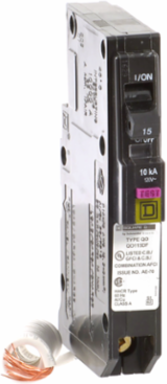

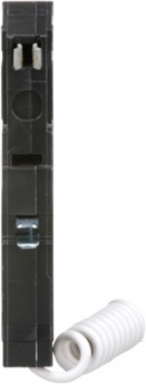

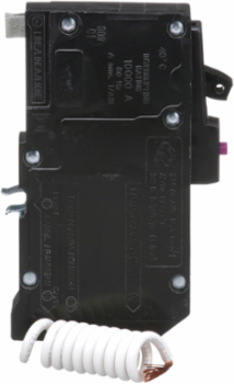

Square D QO115DF Mini Circuit Breaker 15A 1 Pole 120V AC 10kA Plug-In Mount
- MPN: QO115DF
- UPC: 785901401605
- PPN: SCH-QO115DF
CAD
$201.46
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO miniature breaker is rated as 15 A, 12/24 V, and 1 pole. This unit provides 1 kA breaking capacity and plug-on mounting. A full line of factory installed accessories is also available such auxiliary switches, alarm switches, and shunt trips. This unit has a factory installed ground fault circuit interrupter (pigtail neutral) QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 {}-[In] rated current 20 A-[Ue] rated operational voltage {"1" 2018-04-13 05:11:43}-mounting mode plug-in-poles description 1P-Range Presentation
Features
- This Square D QO 1-pole miniature circuit breaker provides comprehensive dual-function protection within a single 15 A space. It combines standard thermal-magnetic overload protection with advanced arc fault (AFCI) and ground fault (GFCI) detection, continuously monitoring your branch circuits for both hidden, fire-causing arc hazards and dangerous low-level electrical leakage current.
- Outfitted with Schneider Electric's innovative Time Saver Diagnostics technology, this smart breaker simplifies electrical fault-finding on the residential floor. By reading the specific blinking pattern of the integrated diagnostic test button immediately after a trip event, service technicians can instantly determine whether the breaker opened due to an arc fault, a ground fault, or a standard thermal overload.
- Designed to maintain continuous mechanical clamping force on 14 AWG to 8 AWG copper or aluminum wires. This stable connection setup limits wire back-out and localized high-resistance heat spots caused by cyclical temperature swings or building vibrations.
- Carrying full CSA safety listings, this residential and light-commercial breaker features an interrupting capacity rated at 10 kA at 120 V AC lines. This high fault tolerance guarantees a code-compliant insulation barrier capable of safely extinguishing massive grid surges before they can compromise downstream home electronics or interior wall wiring.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 15 A
- Breaking Capacity
- 10 kA 120 V AC 50/60 Hz
- Circuit Breaker Type
- combination ARC-fault and ground fault
- Mounting Type
- plug-in
- Net Weight
- 0.272 kg
- Tightening Torque
- 4 N.m
- Ambient Temperature Rating
- 40 °C
- Certifications
- UL listed, CSA certified
- Trip Indication
- VisiTrip visual indication
Voltage120 V AC
Number of Poles1P
Circuit Breaker ApplicationHACR rated

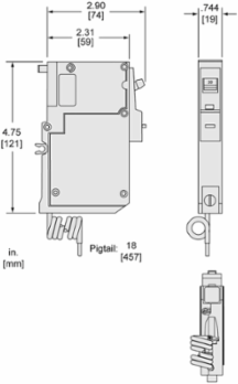

Dimensions121 mm (H) x 19 mm (W) x 74 mm (D)
Wire SizeAWG 14 to AWG 8 copper or aluminum
Electrical Connectionpressure plate with pigtail neutral
ComplianceRoHS Compliant with Exemptions, Mercury Free, China RoHS
Country of OriginMexico
Range of ProductQO
