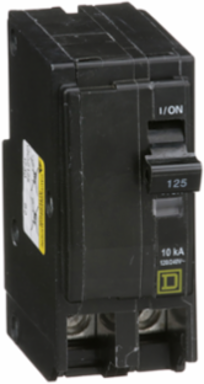

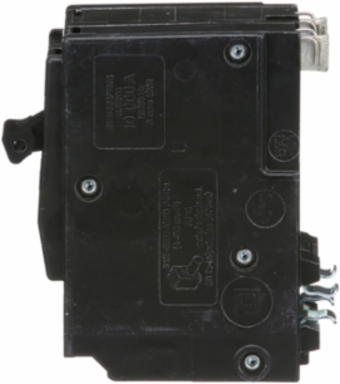

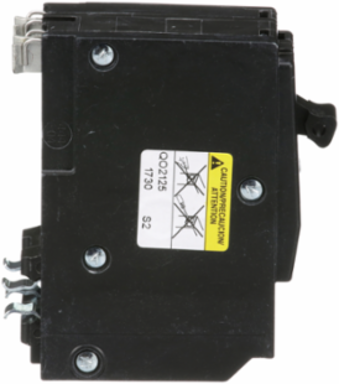

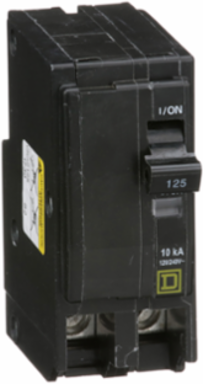

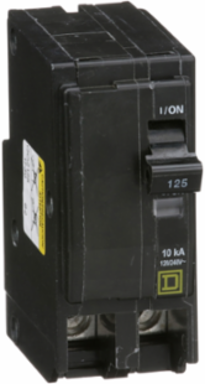

Square D QO2125 Mini Circuit Breaker 125A 2 Pole 120/240VAC 10kA Plug-In Mount
- MPN: QO2125
- UPC: 785901031093
- PPN: SCH-QO2125
CAD
$369.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

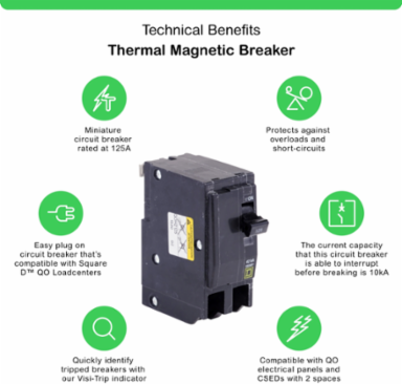

Mini Circuit Breaker 125A 2 Pole 120/240VAC 10kA Plug-In Mount
Features
- Rated for a substantial 125 Amps at 120/240V AC, this 2-pole miniature circuit breaker is engineered to safely feed large residential sub-panels, workshop feeds, or dedicated commercial machinery. For residential contractors and property owners, this provides the robust current capacity needed to run modern multi-load applications without risking nuisance tripping or heat-related fatigue on main panel links.
- Equipped with the signature Square D Visi-Trip visual indicator flag, this breaker displays a highly visible, bright red window the moment an overcurrent or short circuit occurs. Homeowners and maintenance personnel can immediately spot the specific faulted line out of a dense cluster of switches, completely removing the guesswork and saving time during diagnostic troubleshooting.

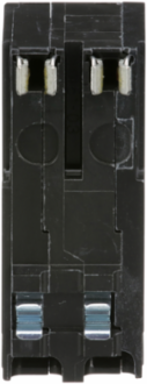

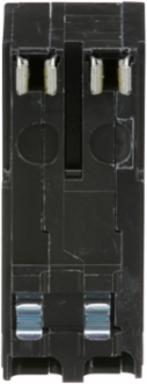

- Featuring a dedicated 2-space plug-on mounting design, this premium breaker snaps directly onto the busbar of Square D QO load centers, and Speed-D switchboard distribution interiors. The precision-molded casing guarantees a tight, vibration-resistant electrical contact that eliminates loose-joint arching risks, though it will not physically fit into Homeline or competitor brand panels.
- Engineered with a fixed thermal-magnetic trip technology over-center mechanism, this unit features a quick-make, quick-break action that snaps open faster than the blink of an eye during a dead short. This rapid intervention significantly minimizes arc flash energy and prevents intense electrical spikes from traveling downstream, protecting expensive household electronics, server stacks, or HVAC compressors.
- Carrying comprehensive CSA and UL listings along with an official HACR rating, this device is certified to handle the high inductive inrush currents produced by heating, air conditioning, and refrigeration equipment. The breaker is built to function flawlessly up to an ambient temperature rating of 40 C (104 F) while meeting strict Canadian Electrical Code guidelines for long-term safety validation.
- Built with heavy-duty box lug terminals, this assembly safely anchors copper or aluminum wires ranging from 4 AWG up to 2/0 AWG. Tightening the terminal pressure screws to the manufacturer-specified torque of 49.56 lbf-in (5.6 N-m) ensures optimal, code-compliant physical clamping that keeps connection resistance low and eliminates hot spots caused by cyclical thermal expansion.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|

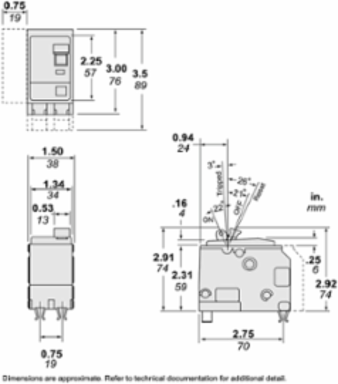

| Depth | 74 mm |
|---|
Complementary Attributes
| Rated Current | 125 A |
|---|
| Line Rated Current | 125 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, OM, SC |
|---|---|
| Certificate Agency | UL Listed, CSA |
| Carbon Footprint Of The Distribution Phase [A4] | 0.043893, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.000084978, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 17 kg CO2 eq., 17.3042434783 |
| Local Publishable Date | 2026-04-14 |
| Stocking Flag | N |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2534 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Awg Gauge | 4 AWG...2/0 AWG copper or aluminium |
| Circuit Breaker Type | standard |
| Energy Efficiency Optimized | False |
| Number Of Poles | 2P |
| Poles Description | 2P |
| Product Or Component Type | miniature circuit-breaker |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 19 kg CO2 eq. |
| Pep Code | ENVPEP2111016EN |
| Pep Verification Date | 2021-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Mexico |
| Energy Model - Use [B6] | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Height Nominal | 89 mm |
| Halogen-free Status | Halogen free product |
| Package Weight(Lbs) | 340.194 g |
| Warranty (In Months) | 18 |
| Air Pollution (M3) End Of Life [C1-c4] | 3.5406 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 11.9352 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 51.141 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 5.4405 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 45.702 |
| Water Pollution (M3) Distribution [A4] | 7.218 |
| Customs Code | 8536200040 |
| Persona Type Names | End User, Consumer, Contractor, Original Equipment Manufacturer, Electrician |
|---|---|
| [Ue] Rated Operational Voltage | 120/240 V AC, 120 V AC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.06219 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 2 kg CO2 eq., 1.98783 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Electrical Connection | pressure plate |
| Mounting Mode | plug-in |
| Number Of Spaces Required | 2 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.1 |
| Tightening Torque | 5.6-5.6 N.m |
| Breaking Capacity 5 | 10 kA |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120V and rated current 20A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1p& 10- Rated breaking capacity 10KA |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 24.8784 |
| Energy Model - Installation [A5] | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; 120V; US / Electricity mix; AC; 127V; MX |
| Width Nominal | 38 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Manufacturing [A1-a3] | 454.11 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 33.351 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 1.5288 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 52.875 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 5.4405 |
| Water Pollution (M3) Manufacturing [A1-a3] | 163.881 |
| Water Pollution (M3) End Of Life [C1-c4] | 4.4721 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Halogene Performance | Halogen free product |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 19.3982414563 |
| Environmental Disclosure | ENVPEP2111016EN |
| Halogen Content Performance | Halogen free product |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2111016EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 40 °C |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2021-11-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | miniature circuit-breaker |
|---|
| Range Of Product | QO |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
