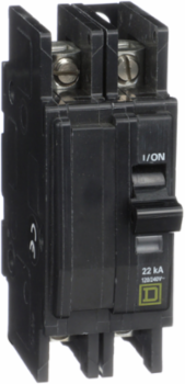

Square D QOU250VH Miniature Circuit Breaker 50A 2 Pole 120/240VAC 22kA
- MPN: QOU250VH
- UPC: 785901495581
- PPN: SCH-QOU250VH
CAD
$434.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit using the interally magnetic strips. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This two pole QOU miniature circuit breaker is rated as 50A, 240VAC. This circuit breaker provides 22 kA breaking capacity. QOU circuit breakers have been verified to adhere to their datasheet specifications by UL and CSA.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth2.95 in
Complementary Attributes
- Line Rated Current
- 50 A
Important Information Attributes
- Persona Type Ids
- EU, OM
- Electrical Connection
- slotted box lugs, line side, slotted box lugs, load side
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Energy Efficiency Optimized
- False
- Number Of Poles
- 2P
- Product Or Component Type
- miniature circuit-breaker
- Returnability
- No
- Tightening Torque
- 45-45 lbf.in (AWG 14...AWG 2)
- Height Nominal
- 4.05 in
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 358.338 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer
Certificate AgencyUL Listed, IEC, CSA
Local Publishable Date2025-11-18
Stocking FlagY
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2534
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Market SegmentationCommercial
Awg GaugeAWG 14...AWG 2 aluminium/copper
Circuit Breaker Typestandard
Mounting Modeunit mount
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductQOU
Sustainable PackagingNo
Pep CodeENVPEP2111016EN
Width Nominal1.5 in
Short-circuit Current22 kA
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Halogene Performance
- Halogen free product
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2111016EN
- Halogen Content Performance
- Halogen free product
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2111016EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductQOU
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
