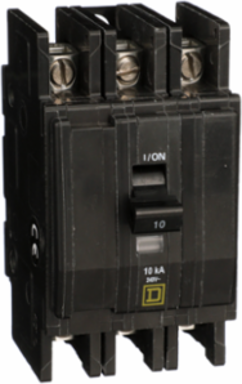

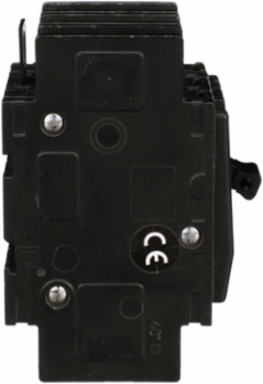

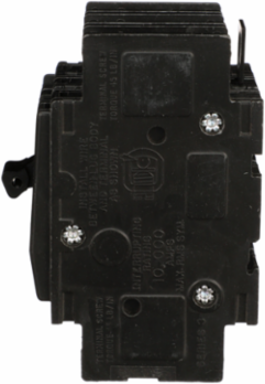

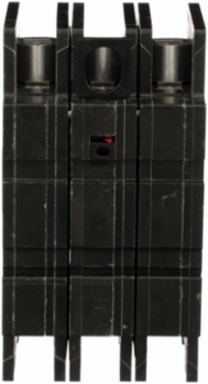

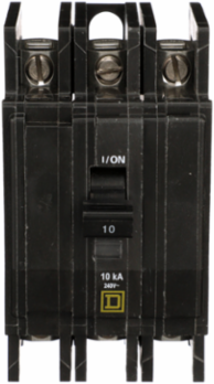

Square D QOU310 Miniature Circuit Breaker 10A 3 Pole 240V AC 10kA
Square D QOU310 Miniature Circuit Breaker 10A 3 Pole 240V AC 10kA
- MPN: QOU310
- UPC: 785901489245
- PPN: SCH-QOU310
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$873.00/ EA
Description
QOU miniature molded case circuit breakers are intended for use in residential and commercial applications. These circuit breakers are unit mount thermal magnetic circuit breakers. QOU breakers will automatically open a circuit under overload or short circuit conditions. They have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped. You can flush mount, surface mount or DIN rail mount these circuit breakers. This 3 pole QOU miniature circuit breaker is rated as 10 A at 240 VAC. This unit provides 10 kA breaking capacity. This breaker has lugs on both cable in and cable out connectors. They are tested and listed according to UL Standard 489 and CSA Standard C22.2 No. 5 02 for circuit breakers. QOU circuit breakers are UL Listed under UL File E84967 DIVQ and are CSA Certified. These QOU breakers are packed in bulk.
Specifications
Environment
- Product Certifications
- UL listed || CSA || IEC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Eu Rohs Directive
- Compliant with Exemptions
- Halogen Content Performance
- Halogen free product
Circularity ProfileN/A
Mercury FreeYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Complementary
- Height
- 4.05 in
- Tightening Torque
- 45-45 lbf.in AWG 14...AWG 2)
- Awg Gauge
- AWG 14...AWG 2 aluminum/copper
- Electrical Connection
- slotted box lugs, line side || slotted box lugs, load side
- [Ue] Rated Operational Voltage
- 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
Mounting Modeunit mount
[In] Rated Current10 A
Width2.25 in
Depth2.95 in
Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
Range Of ProductQOU
Product Or Component Typeminiature circuit-breaker
