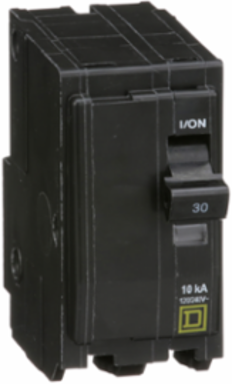

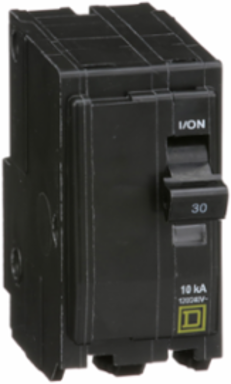

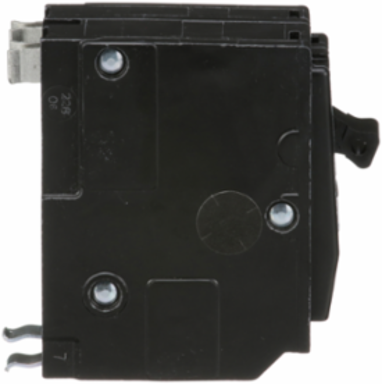

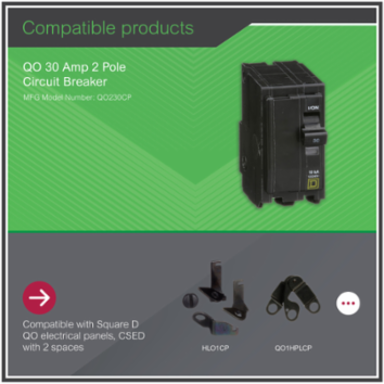

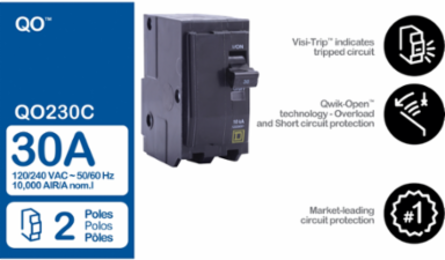

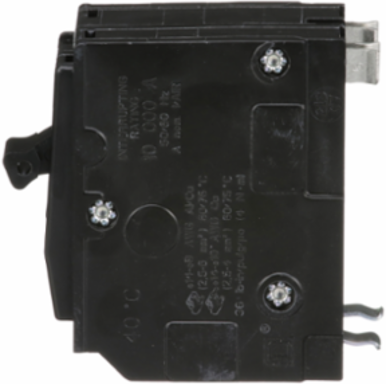

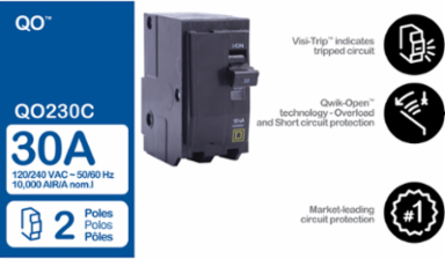

Square D QO230 Miniature Circuit Breaker, 30A, 2 Pole, 120/240VAC, 10kA
- MPN: QO230
- UPC: 785901400424
- PPN: SCH-QO230
CAD
$42.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

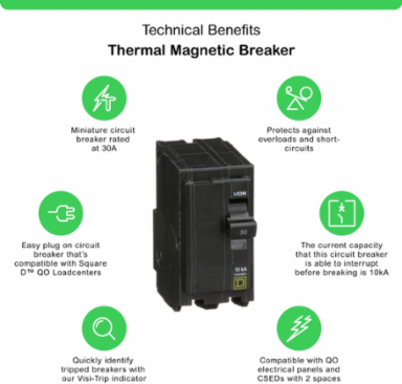

Features
- The QO230 is a premium 2-pole, 30-Amp Miniature Circuit Breaker designed for Square D QO load centers. It provides simultaneous overcurrent protection for both "hot" legs of a 240V circuit, making it the industry standard for protecting residential and commercial equipment like electric water heaters, small central air units, and 240V workshop machinery.
- Like all premium QO breakers, the QO230 features the patented Visi-Trip indicator. When the breaker trips due to a short circuit or overload, a highly visible red flag appears in the window. This allows you to identify a fault at a glance without having to test the handle tension, which is especially helpful in poorly lit basements or mechanical rooms.

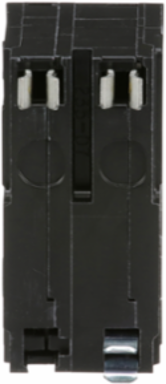

- This breaker is engineered exclusively for Square D QO "Blue Label" load centers, NQ panelboards, and switchboards. It uses a 1.5-inch wide (two 3/4-inch spaces) plug-on design. Note: It is not compatible with Square D Homeline, Eaton, Siemens, or GE panels. Always verify your panel type to ensure a safe, high-integrity electrical connection.
- The QO230 is built with an internal common-trip mechanism. If a fault occurs on either of the two poles, both poles trip at exactly the same time. This prevents "single-phasing"—a dangerous condition where a 240V motor continues to run on only one leg of power, which can lead to overheating, motor burnout, or electrical fires.
- The Square D QO230 is UL Listed and CSA Certified with a 10,000 AIR (Amperes Interrupting Rating). It features high-quality pressure plate terminals that provide a secure, gas-tight connection for copper or aluminum conductors (#14 to #8 AWG), ensuring long-term reliability and full NEC/CEC compliance for your electrical infrastructure.
Documentation & Downloads
Specifications
Additional
- Current Rating
- 30 A
- Interrupt Rating
- 10 kA
- Circuit Breaker Type
- standard
- Mounting Type
- plug-in
- Tightening Torque
- 4 N.m

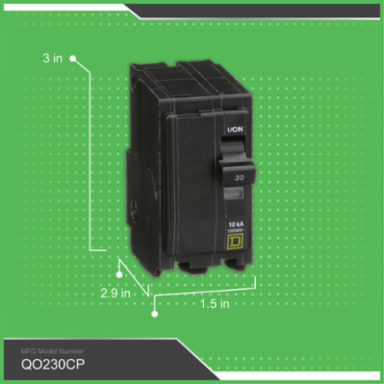

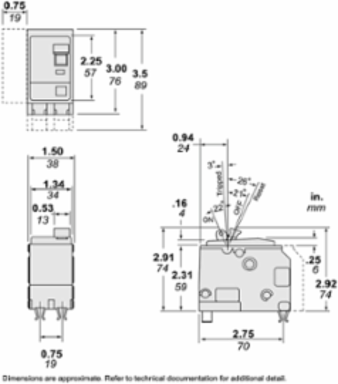

- Width
- 38 mm
- Net Weight
- 0.249 kg
- Ambient Air Temperature
- 40 °C
- Range
- QO
- Product Certifications
- UL listed, CSA Certified
- Mercury Free
- Yes
- Halogen Content
- Halogen free product
Voltage120/240 V AC
Poles2
Circuit Breaker ApplicationHACR rated
Wire SizeAWG 14...AWG 8 copper or aluminum
Height76 mm
Depth74 mm
Electrical Connectionpressure plate
Product Typeminiature circuit-breaker
Rohs ExemptionYes
Eu Rohs DirectiveCompliant with Exemptions
Toxic Heavy Metal FreeYes
Warranty18 months
