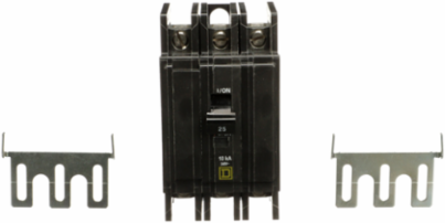

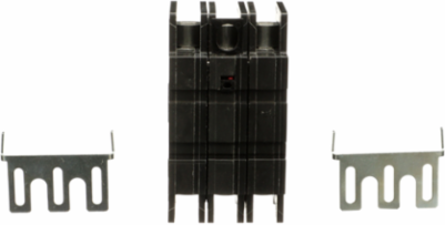

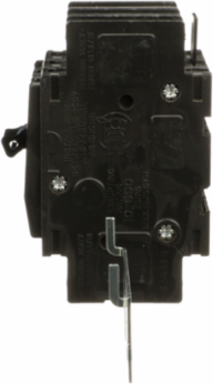

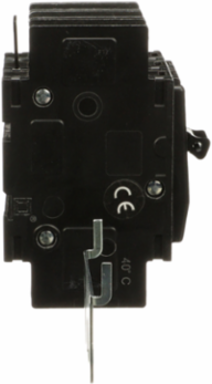

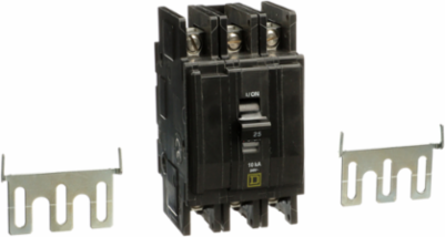

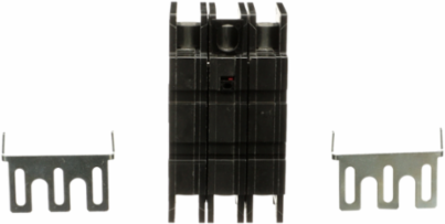

Square D QOU325 Mini Circuit Breaker, 25A, 3 Pole, 240 VAC, 10 kA Breaking Capacity, 2.25 Inch Width
Square D QOU325 Mini Circuit Breaker, 25A, 3 Pole, 240 VAC, 10 kA Breaking Capacity, 2.25 Inch Width
- MPN: QOU325
- UPC: 785901489177
- PPN: SCH-QOU325
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$912.12/ EA
Description
QOU miniature molded case circuit breakers are intended for use in residential and commercial applications. These circuit breakers are unit mount thermal magnetic circuit breakers. QOU breakers will automatically open a circuit under overload or short circuit conditions. They have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped. You can flush mount, surface mount or DIN rail mount these circuit breakers. This 3 pole QOU miniature circuit breaker is rated as 25 A at 240 VAC. This unit provides 10 kA breaking capacity. This breaker has lugs on both cable in and cable out connectors. They are tested and listed according to UL Standard 489 and CSA Standard C22.2 No. 5 02 for circuit breakers. QOU circuit breakers are UL Listed under UL File E84967 DIVQ and are CSA Certified.
Specifications
Environment
- Product Certifications
- CSA || UL listed || IEC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- N/A
- Halogen Content Performance
- Halogen free product
Mercury FreeYes
Toxic Heavy Metal FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Height
- 4.05 in
- Electrical Connection
- slotted box lugs, line side || slotted box lugs, load side
- [In] Rated Current
- 25 A
- Width
- 2.25 in
- [Ue] Rated Operational Voltage
- 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
Tightening Torque45-45 lbf.in AWG 14...AWG 2)
Mounting Modeunit mount
Awg GaugeAWG 14...AWG 2 aluminum/copper
Depth2.95 in
Specifications
- Range Of Product
- QOU
- Product Or Component Type
- miniature circuit-breaker
Circuit Breaker Typestandard
Circuit Breaker ApplicationHACR rated
