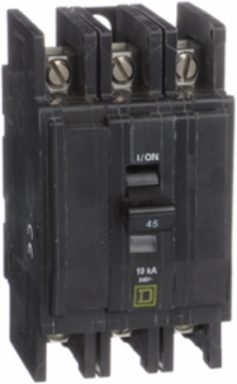

Square D QOU345 Mini Circuit Breaker 45A, 3 Pole, 240 VAC, 10kA, 2.25 Inch Width
Square D QOU345 Mini Circuit Breaker 45A, 3 Pole, 240 VAC, 10kA, 2.25 Inch Width
- MPN: QOU345
- UPC: 785901489191
- PPN: SCH-QOU345
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$912.12/ EA
Description
QOU Miniature Molded Case Circuit Breakers are intended for use in residential and commercial applications. They are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers provide a means to manually open a circuit. A range of accessories can be found for these breakers with their product range and are versatitle in their mounting.
Specifications
Environment
- Product Certifications
- UL listed || IEC || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Halogen Content PerformanceHalogen free product
Complementary
- Height
- 4.05 in
- Electrical Connection
- slotted box lugs, line side || slotted box lugs, load side
- [In] Rated Current
- 45 A
- Width
- 2.25 in
- [Ue] Rated Operational Voltage
- 120/240 V AC || 240 V AC || 120 V AC || 48 V DC
Tightening Torque45-45 lbf.in AWG 14...AWG 2)
Mounting Modeunit mount
Awg GaugeAWG 14...AWG 2 aluminum/copper
Depth2.95 in
Specifications
- Range Of Product
- QOU
- Product Or Component Type
- miniature circuit-breaker
Circuit Breaker Typestandard
Circuit Breaker ApplicationHACR rated
