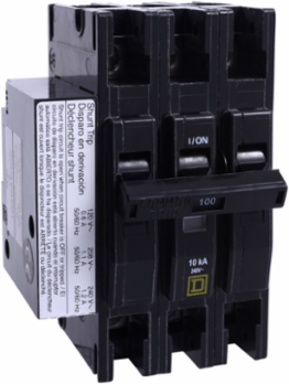

Square D QOU3801042 Mini Circuit Breaker 80A 3 Pole 240VAC Shunt Trip 2.95 Inch Depth
- MPN: QOU3801042
- UPC: 785901666868
- PPN: SCH-QOU3801042
CAD
$2451.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This robust mini circuit breaker from Schneider Electric is engineered to provide reliable protection in power distribution applications. With a current rating of 80A and a three-pole design, it is optimized for 240VAC systems, making it ideal for various industrial and commercial environments. The shunt trip functionality enhances its safety features, allowing for quick disconnection in case of emergency. With a compact depth of 2.95 inches, it efficiently fits into tighter spaces without compromising performance, ensuring that your electrical systems are safeguarded with precision and reliability.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120/240 V AC, 240 V AC, 120 V AC, 60 V DC
- Circuit Breaker Type
- Standard
- Interrupt Rating
- 10 kA
- Tightening Torque
- 45 lbf.in (5.08 N.m)

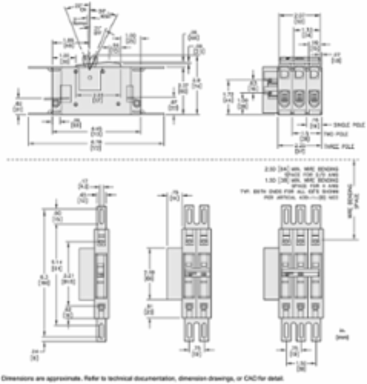

- Depth
- 2.95 in
- Height
- 4.45 in
- Electrical Connection
- Slotted box lugs, line side and load side
- Product Or Component Type
- Miniature circuit-breaker
- Warranty
- 18 months
- Mercury Free
- Yes
- RoHS Compliance
- Compliant with Exemptions
- China RoHS Regulation
- Out of China RoHS scope, substance declaration only
- Circularity Profile
- N/A
Amperage80 A
Circuit Breaker ApplicationHACR rated

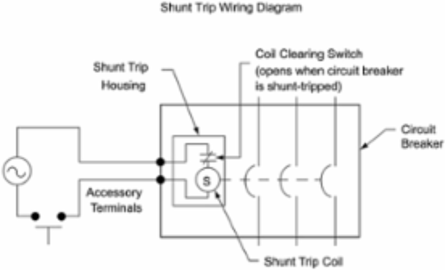

Shunt TripYes
Mounting ModeUnit mount
Width3 in
AWG GaugeAWG 12 to AWG 2/0 aluminum/copper
MaterialNot Specified
Range Of ProductQOU
Product CertificationsUL Listed, CSA, IEC
Halogen Content PerformanceHalogen free product
Reach RegulationContains Substances of Very High Concern above threshold
Sustainable Offer StatusGreen Premium product
Awg GaugeAWG 12 to AWG 2/0 aluminum/copper
