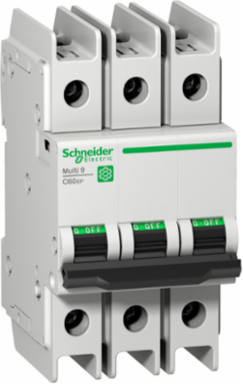

Schneider Electric M9F42335 Miniature Circuit Breaker 3P 35A C Curve 10kA IP20
- MPN: M9F42335
- PPN: SCH-M9F42335
CAD
$150.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 35A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Features
- Specifically engineered for OEMs and panel builders, the M9F42335 is dual-rated as a UL 489 Listed miniature circuit breaker and an IEC 60947-2 certified device. This "one-product" solution eliminates the need to source different components for domestic and export markets, simplifying your inventory management and ensuring your control panels meet global regulatory standards.
- Featuring a Type C tripping curve, this 35A breaker is designed to handle medium inrush currents without nuisance tripping. It is the ideal choice for protecting circuits with inductive loads such as small motors, fans, and transformers where a standard B-curve would fail prematurely during startup, providing a perfect balance between robust protection and operational uptime.
- With a high breaking capacity of 10kA at 240V (UL 489) and up to 15kA (IEC), this breaker is built to safely quench high-energy faults in demanding industrial environments. This ensures that even in the event of a significant electrical short, the M9F42335 will sacrifice itself to protect your downstream equipment and personnel from catastrophic damage.
- The M9F42335 features specialized IP20-rated tunnel terminals that provide a high-torque, gas-tight connection for your conductors. This design prevents "creeping" or loosening of wires caused by thermal cycling or machinery vibration, significantly reducing the risk of hot spots and electrical fires in your DIN-rail enclosures.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Depth72 mm
Physical Attributes
- Color
- Gray
Wire Stripping Length14 mm for top or bottom connection
Complementary Attributes
- Line Rated Current
- 35 A 25 °C EN/IEC 60947-2
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Poles Description
- 3P
- [Ics] Rated Service Breaking Capacity
- 7.5 kA 75 % GB/T 14048.2 - 415 V AC, 15 kA 75 % GB/T 14048.2 - 240 V AC, 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC7.5 kA 75 % EN/IEC 60947-2 - 415 V AC15 kA 75 % EN/IEC 60947-2 - 240 V AC, 4.5 kA 75 % GB/T 14048.2 - 440 V AC
- Connections - Terminals
- tunnel type terminal top or bottom) 1-35 mm² 18 AWG...2 AWG) - rigid with ferrule, tunnel type terminal top or bottom) 1-25 mm² 18 AWG...3 AWG) - flexible
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1.169431715454087, 1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 4 kg CO2 eq., 3.639958047483844
- Local Data Status
- Publishable
- Return Indicator
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1645
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Connection Pitch
- 18 mm between phases
- Control Type
- toggle
- Device Application
- distribution
- Electrical Durability
- 10000 cycles
- Local Signalling
- ON/OFF indication
- Mechanical Durability
- 20000 cycles
- Mounting Support
- DIN rail
- Number Of Poles
- 3P
- Power Losses Per Pole
- 3.3 W
- Product Name
- Multi9 C60
- Provision For Padlocking
- padlockable
- Range Of Product
- Multi9
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 58 kg CO2 eq.
- Trip Unit Technology
- thermal-magnetic
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1304004EN
- Pep Verification Date
- 2023-03-02
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 103 mm
- [Ui] Rated Insulation Voltage
- 500 V AC EN/IEC 60947-2
- Earth-leakage Protection
- without
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
- Tsca Regulation
- Does not contain Section 6H Chemical
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Certificate AgencyIEC, CCC, CSA, UL
[Ue] Rated Operational Voltage240 V AC 50/60 Hz, 415 V AC 50/60 Hz, 440 V AC 50/60 Hz
Carbon Footprint Of The Distribution Phase [A4]0.05828031403088746, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.01891064714192389
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]53 kg CO2 eq., 53.31911538461537
Local Publishable Date2026-07-13
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Contact Position Indicatoryes
Curve CodeC
Device Short NameC60BP
Energy Efficiency OptimizedFalse
Magnetic Tripping Limit8.5 x In +/- 20 % AC
Mounting Modeclip-on
Network TypeAC
Number Of Protected Poles3
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeminiature circuit-breaker
RangeMulti9
ReturnabilityYes
Suitability For Isolationyes EN/IEC 60947-2
Tightening Torque3.5-3.5 N.m top or bottom
Total Power Losses9.9 W
Tropicalisation2 IEC 60068-1
Rated Current 335 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; BG
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %56
Width Nominal54 mm
[Uimp] Rated Impulse Withstand Voltage6 kVEN/IEC 60947-2
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)398.000 g
Take-backNo
Customs Code8536200040
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-80 °C, -40-80 °C
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Carbon Footprint
- 57.529892957243504
- Ambient Air Temperature For Operation
- -30-70 °C-30-70 °C
- Eu Rohs Directive
- Compliant
- Ip Degree Of Protection
- IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1304004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Silicon FreeNo
9 Mm Pitches6
Environmental DisclosureENVPEP1304004EN
Halogen Content PerformanceHalogen free plastic parts product
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticYes
Relative Humidity95-95 % 55-55 °C
Pep Verification Date2023-03-02
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of ProductMulti9
ETIM
- ETIM 8
- EC000042
ETIM 9EC000042
