Multi9 Auxiliary Contact 1 C/O 2-100 mA 24-250 VAC 500 V IP20
Schneider Electric

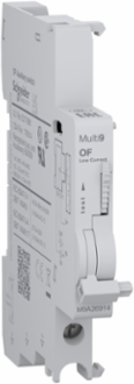

Schneider Electric M9A26914 Multi9 Auxiliary Contact 1 C/O 2-100 mA 24-250 VAC 500 V IP20

  • MPN: M9A26914
  • PPN: SCH-M9A26914

CAD

$57.71

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Multi9 Auxiliary Contact 1 C/O 2-100 mA 24-250 VAC 500 V IP20

Features

  • Designed specifically for the Multi9 range of modular devices, this 9mm auxiliary contact (OF) snaps seamlessly onto the left side of Multi9 C60, N40, and C60H-DC circuit breakers. This compact, modular design allows you to add remote status monitoring without significantly increasing the footprint of your electrical enclosure, making it ideal for high-density OEM control panels and telecommunication power systems.
  • This Open/Close (OF) auxiliary contact acts as a remote signaling device that reports the mechanical position of the breaker's contacts to your PLC or monitoring system. By providing real-time feedback on whether a circuit is active or tripped, it allows for immediate fault detection and faster response times in critical industrial automation and commercial building management applications.
  • Fully compliant with UL 1077, CSA C22.2, and IEC 60947-5-1 standards, this auxiliary component is engineered for global versatility. Whether you are building machines for domestic use or exporting industrial skids to international markets, this multi-certified accessory ensures your control circuits meet rigorous global safety and performance specifications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
China, United States
Depth68 mm

Physical Attributes

Color
Gray
Wire Stripping Length9 mm

Complementary Attributes

Line Rated Current
2-100 mA at 24...240 V, AC 50/60 Hz2-100 mA at 24 V, DC, 2-100 mA at 48 V, DC, 2-100 mA at 60 V, DC, 2-100 mA at 130 V, DC, 2-100 mA at 220 V, DC

Important Information Attributes

Persona Type Ids
EU, OM, OM8
Market Segment
industry, OEM
Certificate Agency
CE, UKCA, UL
Carbon Footprint Of The End-of-life Phase [C1 To C4]
0.06487482915264962, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]
0.2 kg CO2 eq., 0.2374595484099669
Local Data Status
Publishable
Pre Comm Date
2022-12-02
Stocking Flag
N
Serviceability
No
Field Service Division
PPIBS
Weee Product Category
5
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
1216
China Rohs In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Market Segmentation
Commercial
Comb Busbar And Distribution Block Compatibility
top YES
Device Short Name
OF
Mounting Location
left side of circuit-breaker
Mounting Support
DIN rail
Product Availability
Stock - Normally stocked in distribution facility
Range
Multi9
Signal Contacts Composition
1 C/O
Sustainable Packaging
No
Total Lifecycle Carbon Footprint
0.9 kg CO2 eq.
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version
2024-01
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Functional-unit Description
Indicate locally and remotely electrical protection device status for 20 years
Functional-unit Unit
unit
Energy Consumption On Product Lifetime In Kwh
1.314
Energy Model - Installation [A5]
No energy used
Energy Model - End Of Life [C1-c4]
Global, European and French datasets are used.
Height Nominal
85 mm
[Ui] Rated Insulation Voltage
500 V
Connections - Terminals
screw clamp terminal (bottom): 1 cable(s) 2.5-2.5 mm² - rigidscrew clamp terminal (bottom): 2 cable(s) 1.5-1.5 mm² - rigid
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
8536509040
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Quality LabelsEAC, CCC
Carbon Footprint Of The Distribution Phase [A4]0.00874315975387733, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.012103403143606476
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0.5 kg CO2 eq., 0.5311163929133567
Local Publishable Date2025-07-08
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Compatibility CodeOF
Energy Efficiency OptimizedFalse
Mounting Modeclip-on
Operating Modedaisy chain up to 100 devices
Product Or Component TypeOC contact
ReturnabilityYes
Software Versionv6.2.5-6
Tightening Torque1-1 N.m bottom
Tropicalisation2
Pep CodeENVPEP2206015EN
Pep Verification Date2025-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; India, IN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %29
Width Nominal9 mm
[Uimp] Rated Impulse Withstand Voltage4 kV
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)38.000 g
Warranty (In Months)18
Tsca RegulationDoes not contain Section 6H Chemical

Environment Attributes Main

Ambient Air Temperature For Operation
-25-70 °C, -25-70 °C
Take Back
No
Halogene Performance
Halogen free plastic parts product
China Rohs Regulation
X
Mercury Free
Yes
9 Mm Pitches
1
Eu Rohs Directive
Compliant
Ip Degree Of Protection
IP20
Packaging Without Single Use Plastic
No
Reach Free Of Svhc
Yes
Pep Code
ENVPEP2206015EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent external review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.854297333373457
Environmental DisclosureENVPEP2206015EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardNo
Product Compatibilitysingle terminal
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-12-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08

General Attributes

Product Or Component Type
OC contact

ETIM

ETIM 8
EC001286
ETIM 9EC001286
