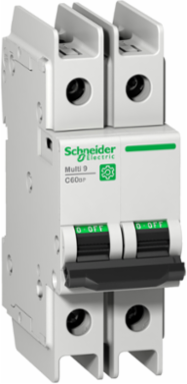

Miniature Circuit Breaker 2P 20A C Curve 10kA IP20
Schneider Electric

Schneider Electric M9F42220 Miniature Circuit Breaker 2P 20A C Curve 10kA IP20

  • MPN: M9F42220
  • PPN: SCH-M9F42220
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $100.08

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Miniature Circuit Breaker 2P 20A C Curve 10kA IP20

    Features

    • This Multi9 C60BP miniature circuit breaker carries simultaneous UL 489, CSA C22.2 No 5, and IEC/EN 60947-2 international certifications. For original equipment manufacturers (OEMs) and industrial control panel builders, this comprehensive code compliance eliminates the costly logistical headache of sourcing different protection components for North American and European machinery exports.
    • Engineered with two fully protected poles and a standard 20A current rating, this 2P thermal-magnetic breaker defends sensitive multi-phase components against both minor overloads and violent short circuits. The specialized multi-phase bridge structure ensures that an electrical fault on either line instantly isolates both conductors simultaneously, cutting off destructive energy feed-through to downstream PLCs and instruments.
    • Featuring a dedicated C-curve tripping characteristic, this breaker handles magnetic inrush currents between 7 to 10 times its nominal rating (8.5 x In +/- 20% on AC networks). It permits the brief, intensive current spikes caused by automated control transformers, inductive solenoids, and small motor starts to pass safely without causing nuisance trips, while remaining hyper-vigilant against genuine overcurrent hazards.
    • Built with an advanced internal arc-chute mechanism, this compact module delivers a high 10 kA short-circuit interrupting rating (AIR) at voltages up to 480Y/277V AC. This robust energy suppression safeguards delicate electronic control cabinets installed directly adjacent to primary industrial mains distribution grids where extreme available fault energies are present.
    • With a standardized narrow width of only 36mm (equivalent to four 9mm module pitches), this compact breaker clips directly onto any standard 35mm DIN rail. The space-saving profile integrates cleanly alongside Multi9 auxiliary contacts, shunt trips, or undervoltage releases, maximizing your remaining sub-panel layout space without compromising strict industrial electrical clearances.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, China, France, United States
    Depth72 mm

    Physical Attributes

    Color
    Gray
    Wire Stripping Length14 mm for top or bottom connection

    Complementary Attributes

    Line Rated Current
    20 A 25 °C EN/IEC 60947-2

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Magnetic Tripping Limit
    8.5 x In +/- 20 % AC, 12 x In +/- 20 % DC
    Certificate Agency
    IEC, CCC, CSA, UL
    [Ue] Rated Operational Voltage
    240 V AC 50/60 Hz, 415 V AC 50/60 Hz, 440 V AC 50/60 Hz
    Carbon Footprint Of The Distribution Phase [A4]
    0.03539390547324476, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0 kg CO2 eq., 0.011484523865544247
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    24 kg CO2 eq., 23.697384615384614
    Local Publishable Date
    2026-03-26
    Stocking Flag
    Y
    Device Type
    LV equipment - Low voltage circuit breaker
    Traceability
    No
    Average Life Duration
    15 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Market Segmentation Id
    COMMERCIAL
    Product Kit Identifier
    N
    Contact Position Indicator
    yes
    Curve Code
    C
    Device Short Name
    C60BP
    Energy Efficiency Optimized
    False
    Mechanical Durability
    20000 cycles
    Mounting Support
    DIN rail
    Number Of Protected Poles
    2
    Power Losses Per Pole
    2.2 W
    Product Name
    Multi9 C60
    Provision For Padlocking
    padlockable
    Range Of Product
    Multi9
    Software Version
    v5.9.4
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    26 kg CO2 eq.
    Trip Unit Technology
    thermal-magnetic
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep Code
    ENVPEP1304004EN
    Pep Verification Date
    2023-03-02
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    20
    Energy Model - Manufacturing [A1-a3]
    Electricity Mix; Production mix; Low voltage; BG
    Energy Model - Use [B6]
    Electricity Mix; Production mix; Low voltage; UE-27
    Recyclability Potential, In %
    56
    Width Nominal
    36 mm
    [Uimp] Rated Impulse Withstand Voltage
    6 kVEN/IEC 60947-2
    Halogen-free Status
    Halogen free plastic parts product
    Package Weight(Lbs)
    246.000 g
    Take-back
    No
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Network TypeDC, AC
    [Ics] Rated Service Breaking Capacity7.5 kA 75 % GB/T 14048.2 - 415 V AC, 15 kA 75 % GB/T 14048.2 - 240 V AC, 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC, 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC, 15 kA 75 % EN/IEC 60947-2 - 240 V AC, 4.5 kA 75 % GB/T 14048.2 - 440 V AC
    Connections - Terminalstunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid, tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule, tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.7102013138134449, 0.7 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]2 kg CO2 eq., 1.7319174577804133
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    ServiceabilityNo
    Field Service DivisionPPIBS
    Service Catalog ItemFinished good
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1645
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationCommercial
    Connection Pitch18 mm between phases
    Control Typetoggle
    Device Applicationdistribution
    Electrical Durability10000 cycles
    Local SignallingON/OFF indication
    Mounting Modeclip-on
    Number Of Poles2P
    Poles Description2P
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeminiature circuit-breaker
    RangeMulti9
    ReturnabilityYes
    Suitability For Isolationyes EN/IEC 60947-2
    Tightening Torque2.5-2.5 N.m top or bottom
    Total Power Losses4.4 W
    Tropicalisation2 IEC 60068-1
    Rated Current 320 A
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
    Functional-unit Unitunité (unit)
    Energy Consumption On Product Lifetime, In Kwh57.816
    Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
    Height Nominal103 mm
    [Ui] Rated Insulation Voltage500 V AC EN/IEC 60947-2
    Earth-leakage Protectionwithout
    Nbr. Of Units In Pkg.1
    Silicone-freeNo
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -40-80 °C, -40-80 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Toxic Heavy Metal Free
    Yes
    Silicon Free
    No
    9 Mm Pitches
    4
    Environmental Disclosure
    ENVPEP1304004EN
    Halogen Content Performance
    Halogen free plastic parts product
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1304004EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ip Degree Of ProtectionIP20 conforming to IEC 60529, IP40 (modular enclosure) conforming to IEC 60529
    Halogene PerformanceHalogen free plastic parts product
    China Rohs RegulationX
    Mercury FreeYes
    Carbon Footprint26.254609397932505
    Ambient Air Temperature For Operation-30-70 °C-30-70 °C
    Eu Rohs DirectiveCompliant
    Operating Altitude0...6561.68 ft (0...2000 m)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % 55-55 °C
    Pep Verification Date2023-03-02
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Type
    miniature circuit-breaker
    Range Of ProductMulti9

    ETIM

    ETIM 8
    EC000042
    ETIM 9EC000042
