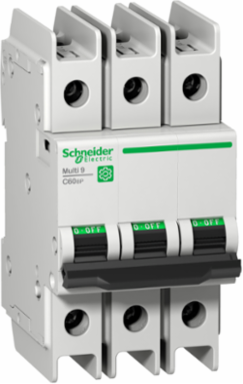

Schneider Electric M9F42308 Miniature Circuit Breaker, 3P, 8A, C Curve, 10kA, IP20

MPN: M9F42308
PPN: SCH-M9F42308

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$157.00

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 8A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States

Depth	72 mm

Physical Attributes

Color	Gray

Wire Stripping Length	14 mm for top or bottom connection

Complementary Attributes

Line Rated Current	8 A 25 °C EN/IEC 60947-2

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Poles Description	3P
[Ics] Rated Service Breaking Capacity	7.5 kA 75 % GB/T 14048.2 - 415 V AC, 15 kA 75 % GB/T 14048.2 - 240 V AC, 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC7.5 kA 75 % EN/IEC 60947-2 - 415 V AC15 kA 75 % EN/IEC 60947-2 - 240 V AC, 4.5 kA 75 % GB/T 14048.2 - 440 V AC
Connections - Terminals	tunnel type terminal top or bottom) 1-25 mm² 18 AWG...8 AWG) - rigid, with ferrule, tunnel type terminal top or bottom) 1-16 mm² 18 AWG...8 AWG) - flexible
Carbon Footprint Of The End-of-life Phase [C1 To C4]	1.0551451211699576, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	3 kg CO2 eq., 2.5602361933957107
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	COMMERCIAL
Product Kit Identifier	N
Contact Position Indicator	yes
Curve Code	C
Device Short Name	C60BP
Energy Efficiency Optimized	False
Magnetic Tripping Limit	8.5 x In +/- 20 % AC
Mounting Mode	clip-on
Network Type	AC
Number Of Protected Poles	3
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	miniature circuit-breaker
Range	Multi9
Returnability	Yes
Suitability For Isolation	yes EN/IEC 60947-2
Tightening Torque	2.5-2.5 N.m top or bottom
Total Power Losses	5.1 W
Tropicalisation	2 IEC 60068-1
Rated Current 3	8 A
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review
Functional-unit Description	Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C
Functional-unit Unit	unité (unit)
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; BG
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %	56
Width Nominal	54 mm
[Uimp] Rated Impulse Withstand Voltage	6 kVEN/IEC 60947-2
Halogen-free Status	Halogen free plastic parts product
Package Weight(Lbs)	358.000 g
Take-back	No
Customs Code	8536200040

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Certificate Agency	IEC, CCC, CSA, UL
[Ue] Rated Operational Voltage	240 V AC 50/60 Hz, 415 V AC 50/60 Hz, 440 V AC 50/60 Hz
Carbon Footprint Of The Distribution Phase [A4]	0.05258467698224339, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.017062541409029356
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	27 kg CO2 eq., 27.46742307692307
Local Publishable Date	2026-07-13
Stocking Flag	Y
Device Type	LV equipment - Low voltage circuit breaker
Traceability	No
Average Life Duration	15 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1645
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Commercial
Connection Pitch	18 mm between phases
Control Type	toggle
Device Application	distribution
Electrical Durability	10000 cycles
Local Signalling	ON/OFF indication
Mechanical Durability	20000 cycles
Mounting Support	DIN rail
Number Of Poles	3P
Power Losses Per Pole	1.7 W
Product Name	Multi9 C60
Provision For Padlocking	padlockable
Range Of Product	Multi9
Software Version	v5.9.4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	31 kg CO2 eq.
Trip Unit Technology	thermal-magnetic
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP1304004EN
Pep Verification Date	2023-03-02
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal	103 mm
[Ui] Rated Insulation Voltage	500 V AC EN/IEC 60947-2
Earth-leakage Protection	without
Nbr. Of Units In Pkg.	1
Silicone-free	No
Warranty (In Months)	18
Tsca Regulation	Does not contain Section 6H Chemical

Environment Attributes Main

Ambient Air Temperature For Storage	-40-80 °C, -40-80 °C
Halogene Performance	Halogen free plastic parts product
China Rohs Regulation	X
Mercury Free	Yes
Carbon Footprint	31.266688440925318
Ambient Air Temperature For Operation	-30-70 °C-30-70 °C
Eu Rohs Directive	Compliant
Ip Degree Of Protection	IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1304004EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Silicon Free	No
9 Mm Pitches	6
Environmental Disclosure	ENVPEP1304004EN
Halogen Content Performance	Halogen free plastic parts product
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Relative Humidity	95-95 % 55-55 °C
Pep Verification Date	2023-03-02
Psr Version	PSR-0005-ed2-EN-2016 03 29
